2NN2H4-33C-R6B

24-Port antenna, 8 x 698-896 MHz, 16 x 1710-2400 MHz, 33° HPBW, 6 x RETs, 4x SBTs, 8ft Length

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Provides 4T4R capability in low and mid bands
  • Full spectrum operation for Band 14, AWS, PCS and WCS bands
  • Twin beam patterns are optimized for minimum beam crossover providing for improved LTE data throughput

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 4 female | 4 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 17 | Port 5 | Port 9
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, antenna only 73.5 kg | 162.040 lb

Array Layout

Click on image to enlarge.

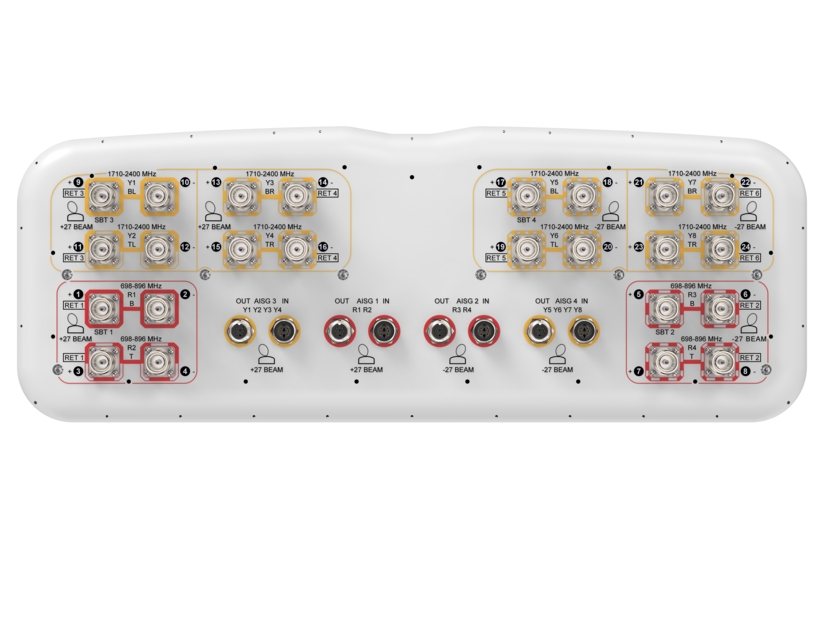

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1710 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 2,000 W @ 50 °C

Electrical Specifications

R1-R4 R1-R4 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–806 824–896 1710–1880 1850–1990 1920–2200 2300–2400
RF Port 1-8 1-8 9-24 9-24 9-24 9-24
Gain, dBi 15.1 15.8 17.0 18.0 18.7 19.2
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 40 37 35 33 31 29
Beamwidth, Vertical, degrees 19.3 17.2 7.9 7.5 7.2 6.4
Beam Tilt, degrees 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 18 16 17 18 17
Front-to-Back Ratio at 180°, dB 27 33 34 35 34 33
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 987.0 N @ 150 km/h (221.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,257.0 N @ 150 km/h (282.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2590 mm | 101.969 in
Weight, gross 96 kg | 211.644 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 4 female | 4 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 17 | Port 5 | Port 9
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, antenna only 73.5 kg | 162.040 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1710 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 2,000 W @ 50 °C

Electrical Specifications

R1-R4 R1-R4 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–806 824–896 1710–1880 1850–1990 1920–2200 2300–2400
RF Port 1-8 1-8 9-24 9-24 9-24 9-24
Gain, dBi 15.1 15.8 17.0 18.0 18.7 19.2
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 40 37 35 33 31 29
Beamwidth, Vertical, degrees 19.3 17.2 7.9 7.5 7.2 6.4
Beam Tilt, degrees 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 18 16 17 18 17
Front-to-Back Ratio at 180°, dB 27 33 34 35 34 33
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 987.0 N @ 150 km/h (221.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,257.0 N @ 150 km/h (282.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2590 mm | 101.969 in
Weight, gross 96 kg | 211.644 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
