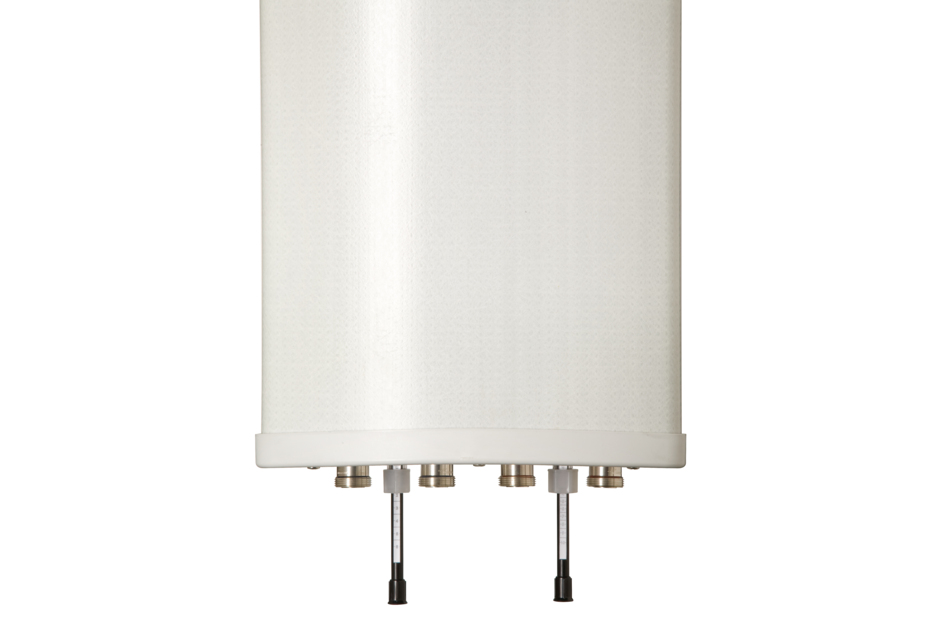

DBXDH-6565B-VTM | DBXDH-6565B-A2M

4-port sector antenna, 2x 790–960 and 2x 1710–2180 MHz, 65° HPBW, RET compatible
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

General Specifications

Antenna Type Sector
Band Multiband
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, low band 2
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information, General

Model with Factory Installed AISG 2.0 Actuator DBXDH-6565B-A2M

Dimensions

Width 301 mm | 11.85 in
Length 1998 mm | 78.661 in
Depth 181 mm | 7.126 in

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz | 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 790–896 870–960 1710–1880 1850–1990 1920–2180
Gain, dBi 15.8 16.7 18.7 18.6 18.3
Beamwidth, Horizontal, degrees 68 65 63 62 62
Beamwidth, Vertical, degrees 10 9.3 5.2 5 4.8
Beam Tilt, degrees 2–12 2–12 1–8 1–8 1–8
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 28 29 33 32 31
Isolation, Cross Polarization, dB 30 30 30 30 30
Isolation, Inter-band, dB 37 35 40 40 40
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 500 500 400 400 400

Electrical Specifications, BASTA

Frequency Band, MHz 790–896 870–960 1710–1880 1850–1990 1920–2180
Gain by all Beam Tilts, average, dBi 15.9 16.3 18.1 18.0 17.9
Gain by all Beam Tilts Tolerance, dB ±0.7 ±0.3 ±0.3 ±0.3 ±0.4
Gain by Beam Tilt, average, dBi 2 ° | 16.0
7 ° | 15.9
12 ° | 15.6
2 ° | 16.3
7 ° | 16.4
12 ° | 15.9
1 ° | 18.1
4 ° | 18.2
8 ° | 18.0
1 ° | 18.0
4 ° | 18.0
8 ° | 17.8
1 ° | 17.9
4 ° | 18.0
8 ° | 17.8
Beamwidth, Horizontal Tolerance, degrees ±2.3 ±2.5 ±2.4 ±2.6 ±3.4
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.4 ±0.2 ±0.2 ±0.3
USLS, beampeak to 20° above beampeak, dB 17 18 16 16 15
Front-to-Back Total Power at 180° ± 30°, dB 24 23 29 28 26
CPR at Boresight, dB 26 24 18 16 14
CPR at Sector, dB 15 10 10 11 12

Mechanical Specifications

Wind Loading at Velocity, frontal 153.1 lbf @ 150 km/h | 681.0 N @ 150 km/h
Wind Loading at Velocity, lateral 216.0 N @ 150 km/h | 48.6 lbf @ 150 km/h
Wind Loading at Velocity, rear 179.8 lbf @ 150 km/h | 800.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 411 mm | 16.181 in
Depth, packed 284 mm | 11.181 in
Length, packed 2314 mm | 91.102 in
Net Weight, without mounting kit 22.8 kg | 50.265 lb
Weight, gross 35 kg | 77.162 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

General Specifications

Antenna Type Sector
Band Multiband
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, low band 2
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information, General

Model with Factory Installed AISG 2.0 Actuator DBXDH-6565B-A2M

Dimensions

Width 301 mm | 11.85 in
Length 1998 mm | 78.661 in
Depth 181 mm | 7.126 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz | 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 790–896 870–960 1710–1880 1850–1990 1920–2180
Gain, dBi 15.8 16.7 18.7 18.6 18.3
Beamwidth, Horizontal, degrees 68 65 63 62 62
Beamwidth, Vertical, degrees 10 9.3 5.2 5 4.8
Beam Tilt, degrees 2–12 2–12 1–8 1–8 1–8
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 28 29 33 32 31
Isolation, Cross Polarization, dB 30 30 30 30 30
Isolation, Inter-band, dB 37 35 40 40 40
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 500 500 400 400 400

Electrical Specifications, BASTA

Frequency Band, MHz 790–896 870–960 1710–1880 1850–1990 1920–2180
Gain by all Beam Tilts, average, dBi 15.9 16.3 18.1 18.0 17.9
Gain by all Beam Tilts Tolerance, dB ±0.7 ±0.3 ±0.3 ±0.3 ±0.4
Gain by Beam Tilt, average, dBi 2 ° | 16.0; 7 ° | 15.9;12 ° | 15.6 2 ° | 16.3; 7 ° | 16.4;12 ° | 15.9 1 ° | 18.1; 4 ° | 18.2; 8 ° | 18.0 1 ° | 18.0; 4 ° | 18.0; 8 ° | 17.8 1 ° | 17.9; 4 ° | 18.0; 8 ° | 17.8
Beamwidth, Horizontal Tolerance, degrees ±2.3 ±2.5 ±2.4 ±2.6 ±3.4
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.4 ±0.2 ±0.2 ±0.3
USLS, beampeak to 20° above beampeak, dB 17 18 16 16 15
Front-to-Back Total Power at 180° ± 30°, dB 24 23 29 28 26
CPR at Boresight, dB 26 24 18 16 14
CPR at Sector, dB 15 10 10 11 12

Mechanical Specifications

Wind Loading at Velocity, frontal 153.1 lbf @ 150 km/h | 681.0 N @ 150 km/h
Wind Loading at Velocity, lateral 216.0 N @ 150 km/h | 48.6 lbf @ 150 km/h
Wind Loading at Velocity, rear 179.8 lbf @ 150 km/h | 800.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 411 mm | 16.181 in
Depth, packed 284 mm | 11.181 in
Length, packed 2314 mm | 91.102 in
Net Weight, without mounting kit 22.8 kg | 50.265 lb
Weight, gross 35 kg | 77.162 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
