FFV4-65B-R6-V3
12-port sector antenna, 4x 617-894 and 8x 1695–2690 MHz, 65° HPBW, 6x RET
Features and Benefits
- Similar to FFV4-65B-R6-V2, except 0-10 tilt for mid band arrays
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2000 mm | 78.740 in |
| Net Weight, without mounting kit | 38.6 kg | 85.098 lb |
Array Layout
| Click on image to enlarge. |

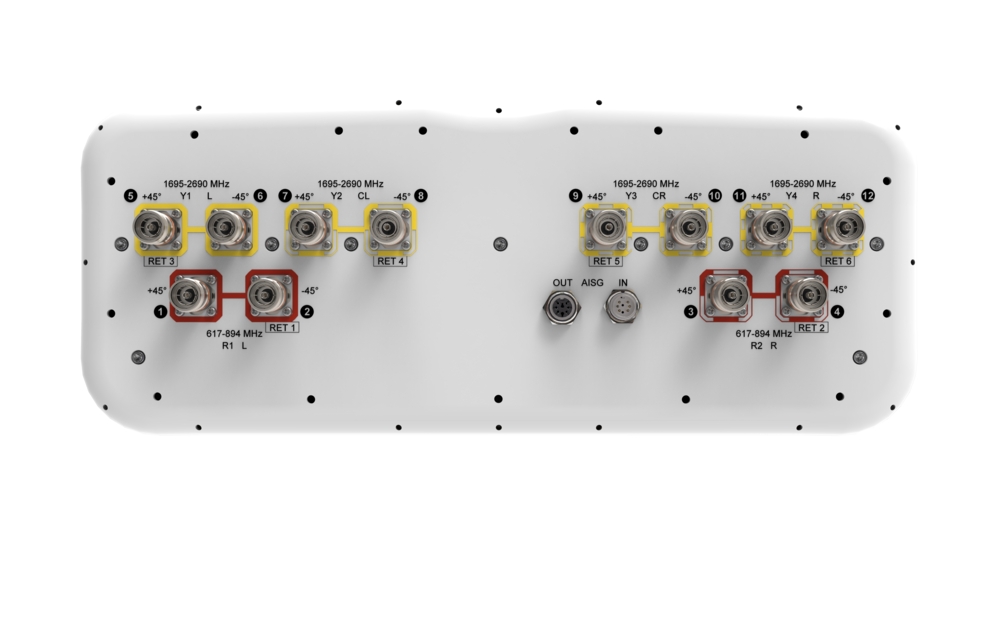

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,400 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 14.7 | 15.3 | 16.3 | 17.0 | 17.2 | 17.5 | 17.9 |
| Beamwidth, Horizontal, degrees | 64 | 57 | 65 | 63 | 60 | 58 | 56 |
| Beamwidth, Vertical, degrees | 12.1 | 10.5 | 6.5 | 6.2 | 5.8 | 5.3 | 5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 17 | 15 | 16 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 31 | 33 | 34 | 33 | 31 | 30 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 14.4 | 14.9 | 15.8 | 16.6 | 16.9 | 17.1 | 17.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.8 | ±0.5 | ±0.5 | ±0.6 | ±0.7 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.5 | ±5.4 | ±7.1 | ±6 | ±6.6 | ±5.4 | ±6 |
| Beamwidth, Vertical Tolerance, degrees | ±0.7 | ±1 | ±0.5 | ±0.3 | ±0.4 | ±0.3 | ±0.4 |
| USLS, beampeak to 20° above beampeak, dB | 15 | 16 | 14 | 15 | 15 | 15 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 22 | 25 | 28 | 27 | 26 | 23 |
| CPR at Boresight, dB | 17 | 16 | 17 | 19 | 19 | 20 | 22 |
| CPR at Sector, dB | 10 | 7 | 8 | 8 | 8 | 5 | 4 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 688.0 N @ 150 km/h (154.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 210.0 N @ 150 km/h (47.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 826.0 N @ 150 km/h (185.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 474.0 N @ 150 km/h (106.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2187 mm | 86.102 in |
| Weight, gross | 53 kg | 116.845 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2000 mm | 78.740 in |
| Net Weight, without mounting kit | 38.6 kg | 85.098 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,400 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 14.7 | 15.3 | 16.3 | 17.0 | 17.2 | 17.5 | 17.9 |
| Beamwidth, Horizontal, degrees | 64 | 57 | 65 | 63 | 60 | 58 | 56 |
| Beamwidth, Vertical, degrees | 12.1 | 10.5 | 6.5 | 6.2 | 5.8 | 5.3 | 5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 17 | 15 | 16 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 31 | 33 | 34 | 33 | 31 | 30 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 14.4 | 14.9 | 15.8 | 16.6 | 16.9 | 17.1 | 17.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.8 | ±0.5 | ±0.5 | ±0.6 | ±0.7 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.5 | ±5.4 | ±7.1 | ±6 | ±6.6 | ±5.4 | ±6 |
| Beamwidth, Vertical Tolerance, degrees | ±0.7 | ±1 | ±0.5 | ±0.3 | ±0.4 | ±0.3 | ±0.4 |
| USLS, beampeak to 20° above beampeak, dB | 15 | 16 | 14 | 15 | 15 | 15 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 22 | 25 | 28 | 27 | 26 | 23 |
| CPR at Boresight, dB | 17 | 16 | 17 | 19 | 19 | 20 | 22 |
| CPR at Sector, dB | 10 | 7 | 8 | 8 | 8 | 5 | 4 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 688.0 N @ 150 km/h (154.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 210.0 N @ 150 km/h (47.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 826.0 N @ 150 km/h (185.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 474.0 N @ 150 km/h (106.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2187 mm | 86.102 in |
| Weight, gross | 53 kg | 116.845 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
