HHTTV-65A-R3

10-Port Antenna, 4x 1695–2200 (HB1), 4x 2490-2690 (HB2) and 2x 1695-2690 (HB3) MHz, 65° horizontal beamwidth, 3x Internal RET
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
  • One RET for H-bands, one RET for T-bands, one RET for V-band
  • Excellent for 4x MIMO applications and maximizing capacity
  • Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands
Specifications

Electrical Specifications

HB1 HB1 HB2 HB3 HB3 HB3
Frequency Band, MHz 1695–1880 1920–2200 2490–2690 1920–2180 2490–2690 1695–1920
Gain, dBi 16.7 17.2 17.2 17.7 17.5 17.2
Beamwidth, Horizontal, degrees 63 63 58 65 60 62
Beamwidth, Vertical, degrees 7.5 6.6 5.5 6.5 5.3 7.4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 20 21 17 19 17
Front-to-Back Ratio at 180°, dB 30 30 33 32 33 33
Isolation, Cross Polarization, dB 28 28 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 300 250 300

Electrical Specifications, BASTA

Frequency Band, MHz 1695–1880 1920–2200 2490–2690 1920–2180 2490–2690 1695–1920
Gain by all Beam Tilts, average, dBi 16.3 16.9 16.8 17.4 17.2 16.8
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.5 ±0.6 ±0.4 ±0.5 ±0.6
Gain by Beam Tilt, average, dBi 2 ° | 16.1
7 ° | 16.4
12 ° | 16.3
2 ° | 16.6
7 ° | 17.1
12 ° | 16.8
2 ° | 16.4
7 ° | 17.1
12 ° | 16.5
2 ° | 17.1
7 ° | 17.6
12 ° | 17.2
2 ° | 16.8
7 ° | 17.4
12 ° | 17.0
2 ° | 16.7
7 ° | 16.9
12 ° | 16.8
Beamwidth, Horizontal Tolerance, degrees ±3.7 ±2.6 ±3.7 ±2.1 ±4 ±2.6
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.5 ±0.3 ±0.5 ±0.2 ±0.5
USLS, beampeak to 20° above beampeak, dB 14 15 17 16 12 17
Front-to-Back Total Power at 180° ± 30°, dB 24 25 24 29 26 29
CPR at Boresight, dB 22 21 19 22 19 21
CPR at Sector, dB 15 10 7 10 8 13

General Specifications

Antenna Type Sector
Polarization ±45°
Band Single band
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information, General

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male

Dimensions

Width 504 mm | 19.843 in
Length 1322 mm | 52.047 in
Depth 118 mm | 4.646 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 2490 – 2690 MHz | 1695 – 2180 MHz
Total Input Power, maximum 500 W @ 50 °C

Remote Electrical Tilt (RET) Information, Electrical

Protocol 3GPP/AISG 2.0 (Single RET)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 10 W
Internal RET High band (3)

Material Specifications

Radiator Material Low loss circuit board
Radome Material Fiberglass, UV resistant

Mechanical Specifications

Wind Loading at Velocity, frontal 855.0 N @ 150 km/h | 192.2 lbf @ 150 km/h
Wind Loading at Velocity, lateral 31.7 lbf @ 150 km/h | 141.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 613 mm | 24.134 in
Depth, packed 226 mm | 8.898 in
Length, packed 1450 mm | 57.087 in
Net Weight, without mounting kit 21 kg | 46.297 lb
Weight, gross 29.4 kg | 64.816 lb

Array Layout

Click on image to enlarge.

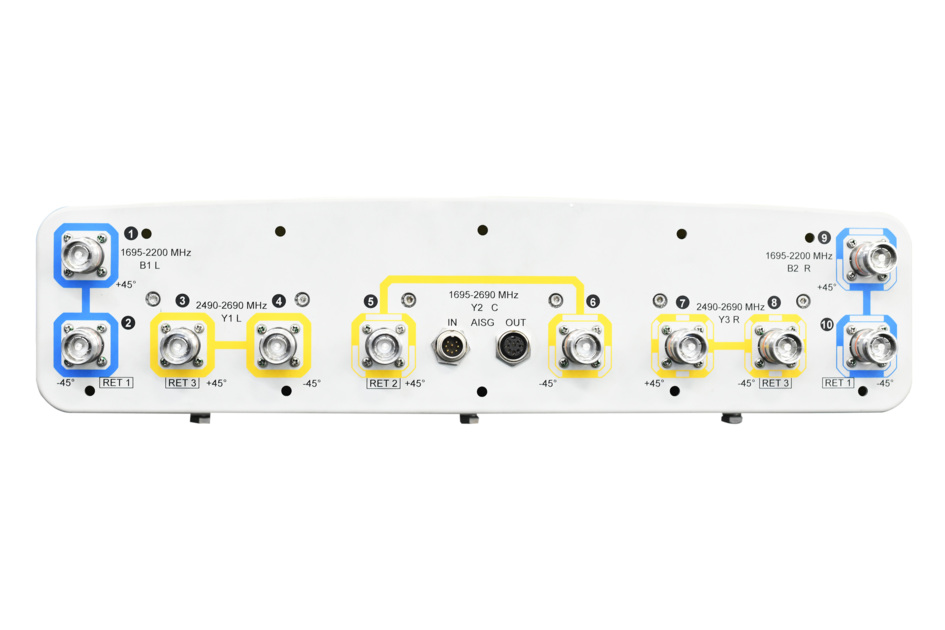

Port Configuration

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
