HWXXX-6516DS-VTM | HWXXX-6516DS-A3M

6-port sector antenna, 6x 1710–2690 MHz, 65° HPBW, RET compatible

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
  • Excellent solution for site sharing and maximizing capacity
  • Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
RF Connector Interface 7-16 DIN Female

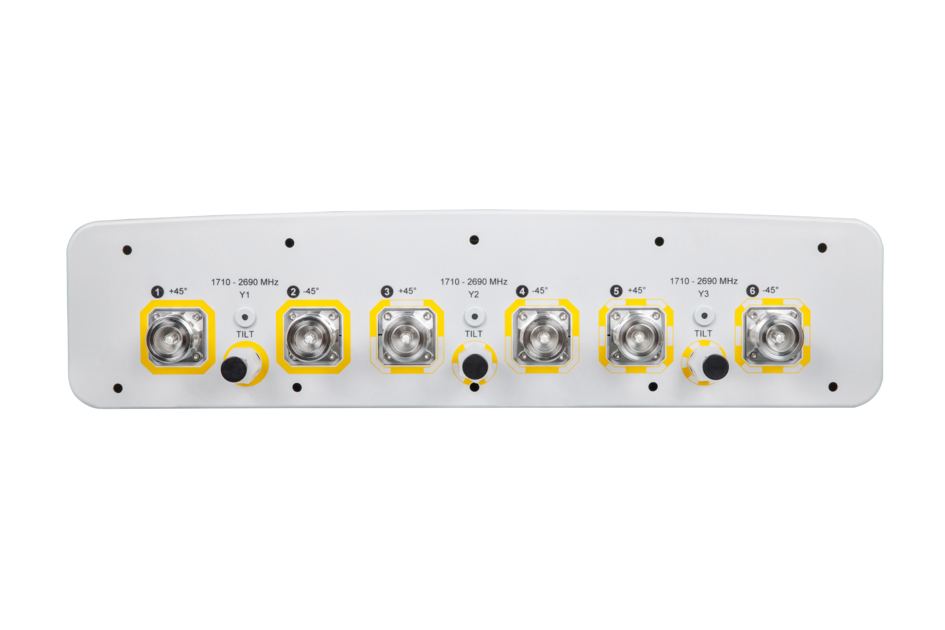

RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator HWXXX-6516DS-A3M

Dimensions

Width 504 mm | 19.843 in
Depth 118 mm | 4.646 in
Length 1390 mm | 54.724 in
Net Weight, without mounting kit 19.5 kg | 42.99 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2690 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180 2300–2500 2500–2690
Gain, dBi 17.6 17.7 17.9 18.4 18.3
Beamwidth, Horizontal, degrees 62 63 64 62 61
Beamwidth, Vertical, degrees 7.3 6.8 6.4 5.3 5
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 15 17 17 13 14
Front-to-Back Ratio at 180°, dB 27 27 27 27 27
Isolation, Cross Polarization, dB 30 30 30 30 30
Isolation, Inter-band, dB 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 350 350 350 300 300

Mechanical Specifications

Wind Loading @ Velocity, frontal 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 77.0 N @ 150 km/h (17.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 908.0 N @ 150 km/h (204.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 613 mm | 24.134 in
Depth, packed 226 mm | 8.898 in
Length, packed 1525 mm | 60.039 in
Weight, gross 31.1 kg | 68.564 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
