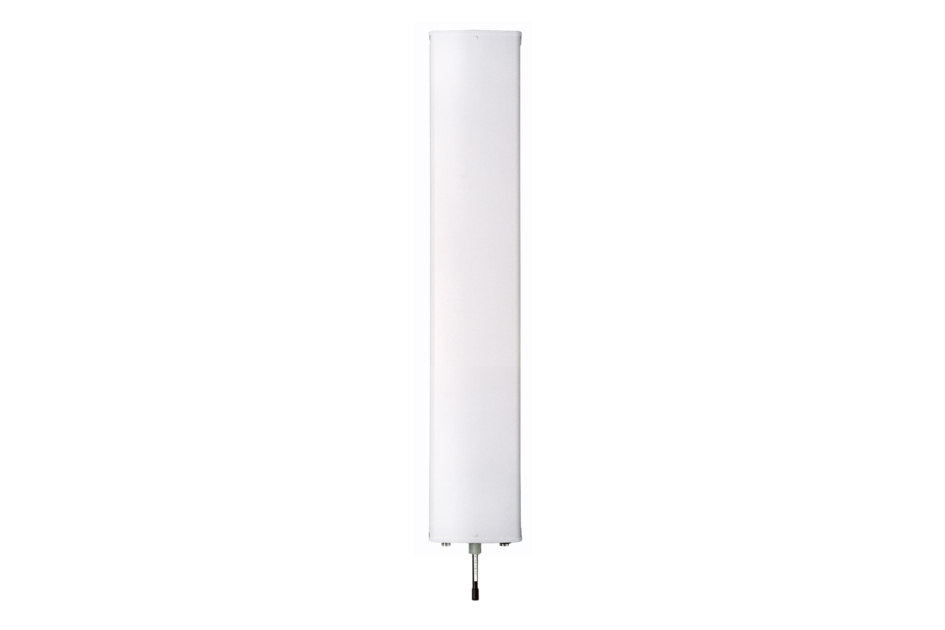

LDX-6513DS-VTM | LDX-6513DS-A1M
2-port sector antenna, 2x 790–960 MHz, 65° HPBW, RET compatible
Specifications
Features and Benefits
- Engineered to provide wideband capability to support “Digital Dividend” band applications, future ready
- Same physical size as existing 800/900 MHz antennas for easy site zoning
- Proven core design technology, with over 1,000,000 similar antennas deployed
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote Electrical Tilt (RET) Information
| Model with Factory Installed AISG 2.0 Actuator | LDX-6513DS-A1M |
Dimensions
| Width | 269 mm | 10.591 in |
| Depth | 132 mm | 5.197 in |
| Length | 1297 mm | 51.063 in |
| Net Weight, without mounting kit | 9.3 kg | 20.503 lb |
Array Layout
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 790–896 | 870–960 |
| Gain, dBi | 15.0 | 15.4 |
| Beamwidth, Horizontal, degrees | 66 | 65 |
| Beamwidth, Vertical, degrees | 15.1 | 14.3 |
| Beam Tilt, degrees | 0–15 | 0–15 |
| USLS (First Lobe), dB | 16 | 15 |
| Front-to-Back Ratio at 180°, dB | 32 | 30 |
| CPR at Boresight, dB | 23 | 23 |
| CPR at Sector, dB | 12 | 10 |
| Isolation, Cross Polarization, dB | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 402.0 N @ 150 km/h (90.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 436.0 N @ 150 km/h (98.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 376 mm | 14.803 in |
| Depth, packed | 267 mm | 10.512 in |
| Length, packed | 1610 mm | 63.386 in |
| Weight, gross | 20.3 kg | 44.754 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote Electrical Tilt (RET) Information
| Model with Factory Installed AISG 2.0 Actuator | LDX-6513DS-A1M |
Dimensions
| Width | 269 mm | 10.591 in |
| Depth | 132 mm | 5.197 in |
| Length | 1297 mm | 51.063 in |
| Net Weight, without mounting kit | 9.3 kg | 20.503 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 790–896 | 870–960 |
| Gain, dBi | 15.0 | 15.4 |
| Beamwidth, Horizontal, degrees | 66 | 65 |
| Beamwidth, Vertical, degrees | 15.1 | 14.3 |
| Beam Tilt, degrees | 0–15 | 0–15 |
| USLS (First Lobe), dB | 16 | 15 |
| Front-to-Back Ratio at 180°, dB | 32 | 30 |
| CPR at Boresight, dB | 23 | 23 |
| CPR at Sector, dB | 12 | 10 |
| Isolation, Cross Polarization, dB | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 402.0 N @ 150 km/h (90.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 436.0 N @ 150 km/h (98.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 376 mm | 14.803 in |
| Depth, packed | 267 mm | 10.512 in |
| Length, packed | 1610 mm | 63.386 in |
| Weight, gross | 20.3 kg | 44.754 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
