UU-360S-F

4-port small cell antenna, 4x 3300-5000 MHz. 360° Horizontal Beamwidth, fixed tilt.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Light weight, low profile omnidirectional antenna ideal for low to moderate gain applications
  • Compact and small footprint, space-saving design for high-density environments
  • Supports up to 4T4R applications

General Specifications

Antenna Type Small Cell
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 4

Dimensions

Width 200 mm | 7.874 in
Depth 200 mm | 7.874 in
Length 600 mm | 23.622 in
Net Weight, without mounting kit 4.7 kg | 10.362 lb

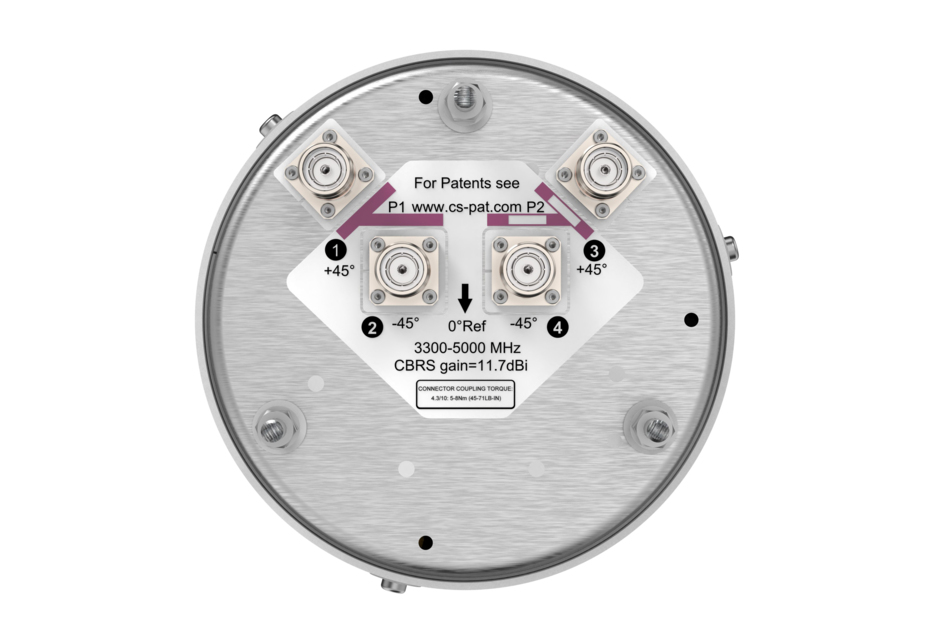

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 3300 – 5000 MHz
Polarization ±45°
Total Input Power, maximum 360 W

Electrical Specifications

Frequency Band, MHz 3300–3600 3550–3700 3600–3900 3900–4200 4200–4500 4500–5000
Gain, dBi 11.5 11.7 11.6 11.9 11.7 14.1
Beamwidth, Horizontal, degrees 360 360 360 360 360 360
Beamwidth, Vertical, degrees 9.1 9.1 8.5 7.8 7.1 6.7
Beam Tilt, degrees 4 4 4 4 4 4
USLS (First Lobe), dB 15 15 15 15 15 15
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
Input Power per Port at 50°C, maximum, watts 125 125 125 125 125 125

Mechanical Specifications

Wind Loading @ Velocity, frontal 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 150.0 N @ 150 km/h (33.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 300 mm | 11.811 in
Depth, packed 320 mm | 12.598 in
Length, packed 850 mm | 33.465 in
Weight, gross 7.3 kg | 16.094 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Small Cell
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 4

Dimensions

Width 200 mm | 7.874 in
Depth 200 mm | 7.874 in
Length 600 mm | 23.622 in
Net Weight, without mounting kit 4.7 kg | 10.362 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 3300 – 5000 MHz
Polarization ±45°
Total Input Power, maximum 360 W

Electrical Specifications

Frequency Band, MHz 3300–3600 3550–3700 3600–3900 3900–4200 4200–4500 4500–5000
Gain, dBi 11.5 11.7 11.6 11.9 11.7 14.1
Beamwidth, Horizontal, degrees 360 360 360 360 360 360
Beamwidth, Vertical, degrees 9.1 9.1 8.5 7.8 7.1 6.7
Beam Tilt, degrees 4 4 4 4 4 4
USLS (First Lobe), dB 15 15 15 15 15 15
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
Input Power per Port at 50°C, maximum, watts 125 125 125 125 125 125

Mechanical Specifications

Wind Loading @ Velocity, frontal 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 150.0 N @ 150 km/h (33.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 300 mm | 11.811 in
Depth, packed 320 mm | 12.598 in
Length, packed 850 mm | 33.465 in
Weight, gross 7.3 kg | 16.094 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Assembly Drawing

Line drawing

Installation Instruction

P040-0042 Mounting Kits For Omni Antennas

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

UU-360S-F Product specifications

Warranty

CommScope Limited Product Warranty

Assembly Drawing

Line drawing

Installation Instruction

P040-0042 Mounting Kits For Omni Antennas

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

UU-360S-F Product specifications

Warranty

CommScope Limited Product Warranty
