F-019-S6

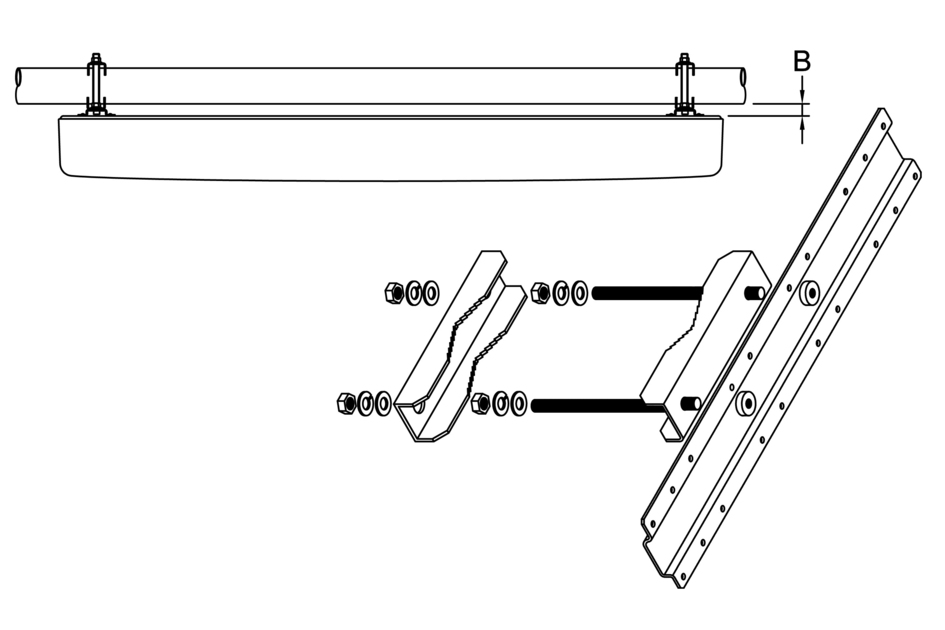

Fixed Tilt Pipe Mounting Kit for 3.0"-4.5" (75-115mm) OD round members for panel antennas. Includes 2 clamp sets.
Specifications
Specifications
Product Classification
| Product Type | Pipe mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 75 mm | 2.953 in |
| Antenna-to-Pipe Distance | 30 mm | 1.181 in |
| Weight, net | 2 kg | 4.409 lb |
Material Specifications
| Material Type | Stainless steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Pipe mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 75 mm | 2.953 in |
| Antenna-to-Pipe Distance | 30 mm | 1.181 in |
| Weight, net | 2 kg | 4.409 lb |
Material Specifications
| Material Type | Stainless steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
