VIP4402 | VIP4402 Compact Mediaroom® Set-top

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

IPTV, HLS, HEVC, HD Compact Mediaroom® Set-top with 802.11ac Wi-Fi

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

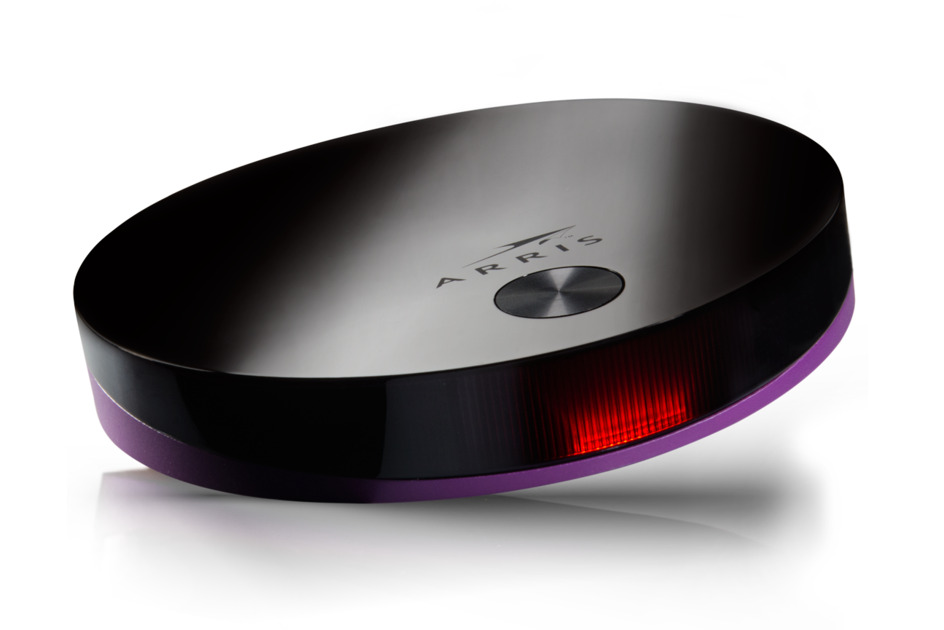

Introducing the new generation of HEVC capable IP set-top boxes in stylish casing design. The VIP4402 delivers a stunning high-definition video viewing experience in a beautiful small 5" round chassis. 802.11ac 2x2 Wi-Fi connectivity ensures high quality IPTV delivery with an exceptional ease of installation.

Compact HD Client STB
Supports both MediaKind Mediaroom on Linux and MediaFirst
Optional 802.11ac 5GHz 2x2 Wi-Fi for high quality IPTV application
Supports High-Definition Multimedia Interface (HDMI™) 2.0a connectivity with High-Bandwidth Digital Content Protection (HDCP)
Universal Remote Control friendly, supports IR and Bluetooth® Low Energy options
Supports multiple video codecs – including HEVC, MPEG-4 AVC (H.264). MPEG-2 and VC-1 for optimum deployment flexibility

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	IP video device

General Specifications

Graphics	OpenGL 3.0/2.0, 1.1/1 Gpix/s
Memory	1 GB DRAM \| 1 GB Flash
Network Interface	Ethernet \| Wi-Fi
Processor	6000 DMIPS
Remote Interfaces	Bluetooth Low Energy (optional) \| IR
Software Compatibility	Mediaroom
Tuner	IP
Video Formats	HD
Video Resolution	1080i \| 1080p60 \| 720p
Wi-Fi Interface Standard	2x2 IEEE 802.11ac

Dimensions

Height	25.908 mm \| 1.02 in
Diameter	129.54 mm \| 5.1 in

Logo Image

Click on image to enlarge.

Electrical Specifications

Power Consumption

11 W

Environmental Specifications

Operating Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Relative Humidity	8%–95%
Standards Compliance	CE \| DoEv6 \| RoHS Compliant \| USVA \| WEEE

Packaging and Weights

Weight, net

0.209 kg | 0.46 lb

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	IP video device

General Specifications

Graphics	OpenGL 3.0/2.0, 1.1/1 Gpix/s
Memory	1 GB DRAM \| 1 GB Flash
Network Interface	Ethernet \| Wi-Fi
Processor	6000 DMIPS
Remote Interfaces	Bluetooth Low Energy (optional) \| IR
Software Compatibility	Mediaroom
Tuner	IP
Video Formats	HD
Video Resolution	1080i \| 1080p60 \| 720p
Wi-Fi Interface Standard	2x2 IEEE 802.11ac
