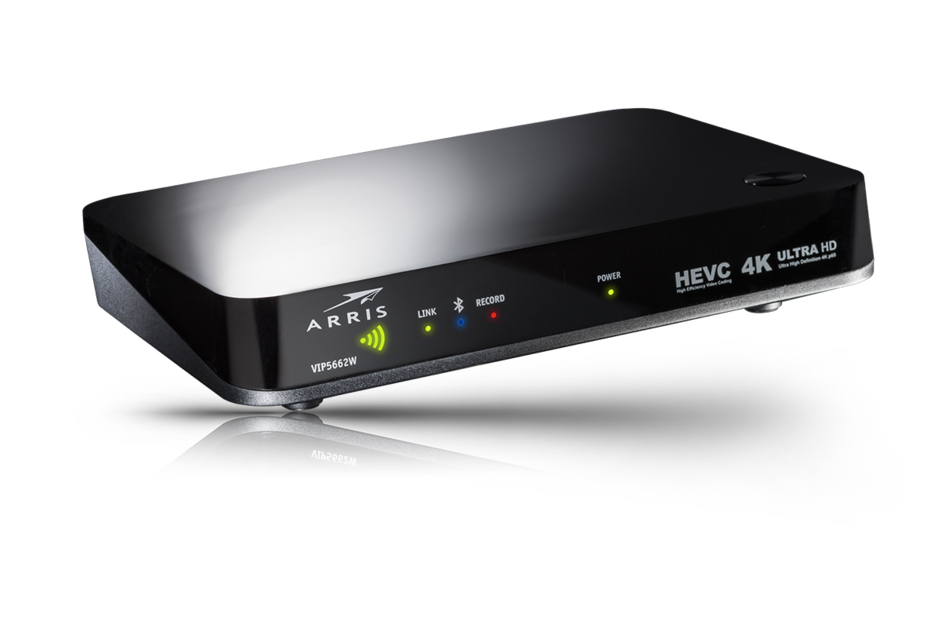

VIP5662 | VIP5662 UHD Mediaroom® DVR

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

IP, HEVC, Ultra-HD Mediaroom® DVR with 802.11ac Wi-Fi

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

The VIP5662 is a stylish IP set-top which delivers stunning ultra-high-definition (UHD) video with High Dynamic Range (HDR) using the HDR10 / SMPT2084 profile for an ‘as if looking through the window’ experience.

The set-top is optimized for the Ericsson MediaRoom or MediaFirst customer experiences, delivering all the features these software platforms offer. It supports HEVC decoding for optimal use of network bandwidth. A slot-in disk module supports DVR/PVR and time-shift services.

UltraHD, 4k x 2k p60 10-bit color client set-top
High Dynamic Range (HDR), SMPTE2084
Supports both MediaKind Mediaroom on Linux and MediaFirst
802.11ac 5GHz 4x4 Wi-Fi for high quality IPTV application
Upgradable 1TB hard disk drive (HDD) for Multi-room DVR (watch and record) functionality
Interactive IP set-top supports Electronic Program Guides (EPG) and Video On Demand (VOD), and Multi-room DVR as well as many web/IP-delivered applications using rich advanced graphics
Supports High-Definition Multimedia Interface (HDMI™) 2.0a connectivity with High-Bandwidth Digital Content Protection (HDCP)
Universal Remote Control friendly, supports IR and Bluetooth® Low Energy options
Supports multiple video codecs – including HEVC, MPEG-4 AVC (H.264). MPEG-2 and VC-1 for optimum deployment flexibility

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	IP video device

General Specifications

Audio Decode	AAC LC \| Dolby Digital 5.1 \| Dolby Digital Plus \| EAC3 \| HE-AAC \| MP3 \| MPEG-1
Audio Interfaces	Mini-DIN \| Optical SPDIF
Graphics	OpenGL 2.0, 2.7 Gpix/s
Hard Disk	500 GB / 1 TB (slot-in)
Memory	1 GB Flash \| 2 GB DDR3
Network Interface	Ethernet \| Wi-Fi
Processor	12000 DMIPS
Rear Panel Interfaces	HDMI 2.0 \| Mini-DIN \| Optical SPDIF
Remote Interfaces	Bluetooth Low Energy (optional) \| IR
Software Compatibility	Mediaroom
Tuner	IP
Video Formats	UHD
Video Decode/Encode	HEVC \| MPEG-2 \| MPEG-4 AVC \| VP9
Video Resolution	1080i \| 1080p60 \| 2160p60 10-bit \| 480i \| 480p \| 720p
Wi-Fi Interface Standard	4x4 IEEE 802.11ac

Dimensions

Height	179.832 mm \| 7.08 in
Width	54.864 mm \| 2.16 in
Length	239.776 mm \| 9.44 in

Logo Image

Click on image to enlarge.

Electrical Specifications

Power Consumption

30 W

Environmental Specifications

Operating Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Standards Compliance	CE \| Code of Conduct compliant (CoC) \| IVA \| RoHS Compliant \| WEEE

Packaging and Weights

Weight, net

0.717 kg | 1.58 lb
