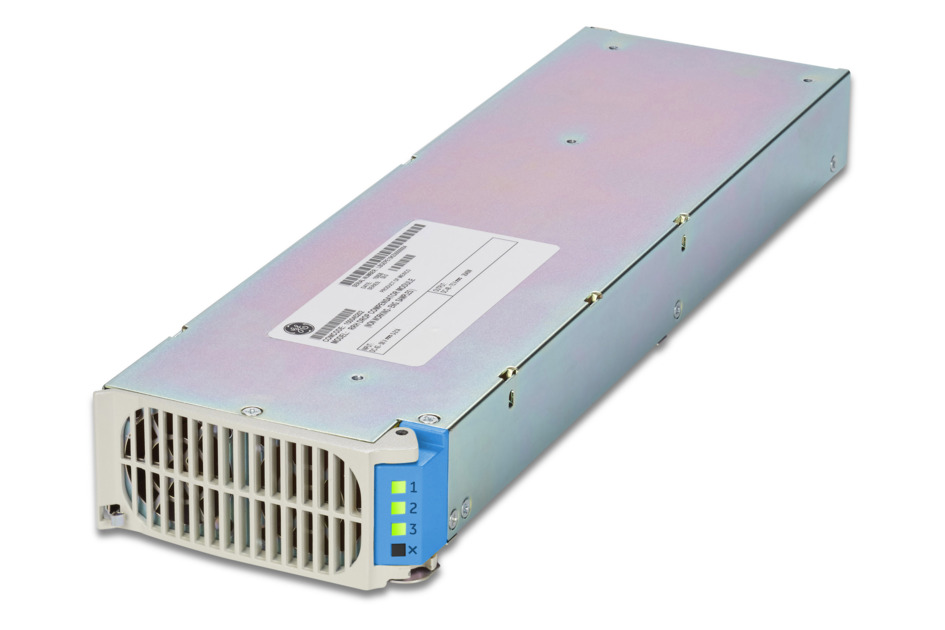

PS-1600-73

PowerShift® Module, 2 separate 2000 watts circuits per module

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Reduced capital/operating expenditures
  • Engineering flexibility
  • Future-ready design

Product Classification

Product Type Module
Product Brand PowerShift Macro®
Product Series V2

Dimensions

Height 41.402 mm | 1.63 in
Width 101.6 mm | 4 in
Depth 351.79 mm | 13.85 in

Electrical Specifications

Input Current Range 0-57 A @ -38Vdc
Input Voltage Range -38 to -58 Vdc
Input Voltage, nominal -54 Vdc
Output Current Range 0-30 A
Output Voltage Range -48 to -73 Vdc
Output Voltage Ripple 400 mVpp
Output Voltage, nominal -56 Vdc
Electrical Safety Standard CE | IEC 60950 | UL | cUL
Electromagnetic Compatibility/Interference (EMC/EMI) EN 55022 Class A
Power Efficiency 93 %
Power Efficiency, nominal 97 %
Programmable RRU Voltage, nominal -56 Vdc
Total Output Power 2000 W, input voltage dependent

Environmental Specifications

Relative Humidity 95%, non-condensing
Ambient Temperature -40 °C | -40 °F | 65 °C | 149 °F
Mean Time Between Failures (MTBF) at Temperature 300,000 h @ 25 °C

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
