APG-BDFDF-350

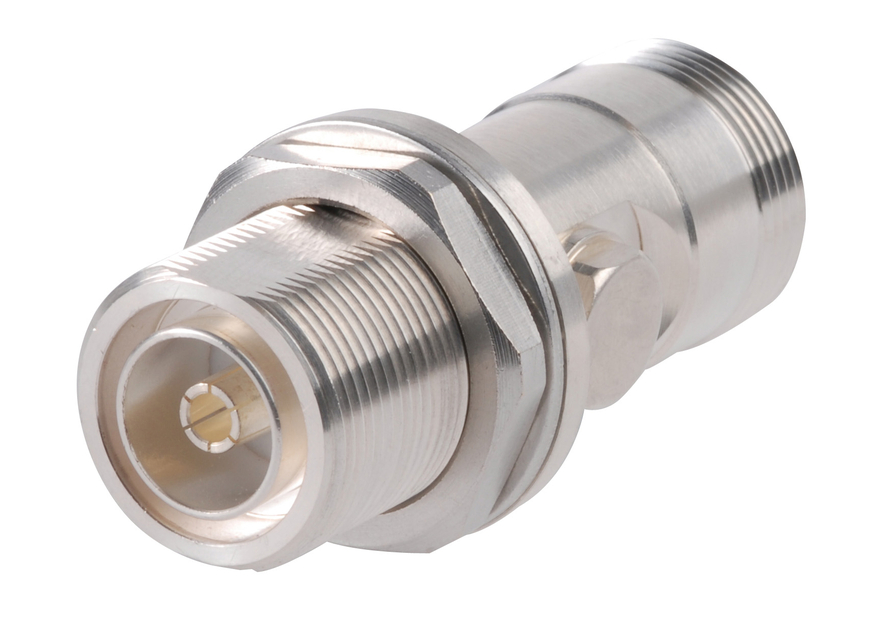

Arrestor Plus® Gas Tube Surge Arrestor (350 V), 45–2170 MHz, with interface types DIN Female Bulkhead and DIN Female
Specifications
Product Classification
| Product Type | Surge arrestor |
| Ordering Note | CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in the United States and Canada |
General Specifications
| Device Type | dc Pass |
| Body Style | Bulkhead |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female Bulkhead |
| Interface 2 | 7-16 DIN Female |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Height | 39.88 mm | 1.57 in |
| Width | 39.88 mm | 1.57 in |
| Length | 81.03 mm | 3.19 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Average Power | 400 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 350 V |
| Lightning Surge Current | 20 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 45 – 1000 MHz | 1000 – 2000 MHz | 2000 – 2170 MHz |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.201 | 20.79 |
| 1000–2000 MHz | 1.201 | 20.79 |
| 2000–2170 MHz | 1.330 | 17.00 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 0.299 kg | 0.66 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Surge arrestor |
| Ordering Note | CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in the United States and Canada |
General Specifications
| Device Type | dc Pass |
| Body Style | Bulkhead |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female Bulkhead |
| Interface 2 | 7-16 DIN Female |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Height | 39.88 mm | 1.57 in |
| Width | 39.88 mm | 1.57 in |
| Length | 81.03 mm | 3.19 in |
Electrical Specifications
| Average Power | 400 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 350 V |
| Lightning Surge Current | 20 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 45 – 1000 MHz | 1000 – 2000 MHz | 2000 – 2170 MHz |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 45–1000 MHz | 1.201 | 20.79 |
| 1000–2000 MHz | 1.201 | 20.79 |
| 2000–2170 MHz | 1.330 | 17.00 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 0.299 kg | 0.66 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
