C100-BNFSR-2M

CNT-100 CNT® Jumper with interface types N Bulkhead Female and SMA Male Right Angle, 2 m

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Braided cable assembly
Product Brand CNT®
Product Series CNT-100

General Specifications

Body Style, Connector A Bulkhead
Body Style, Connector B Right angle
Cable Family CNT-100
Interface, Connector A N Female
Interface, Connector B SMA Male
Specification Sheet Revision Level A

Dimensions

Length 2 m | 6.562 ft
Nominal Size 0.100 in

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
700–3000 MHz 1.329 17.00

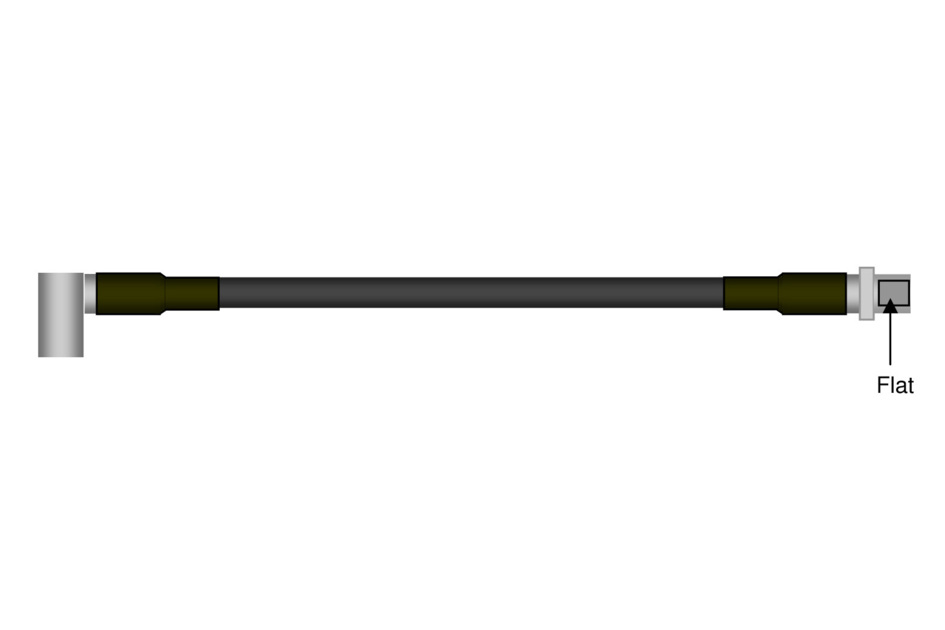

Jumper Assembly Sample Label

Click on image to enlarge.

Product Classification

Product Type Braided cable assembly
Product Brand CNT®
Product Series CNT-100

General Specifications

Body Style, Connector A Bulkhead
Body Style, Connector B Right angle
Cable Family CNT-100
Interface, Connector A N Female
Interface, Connector B SMA Male
Specification Sheet Revision Level A

Dimensions

Length 2 m | 6.562 ft
Nominal Size 0.100 in

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
700–3000 MHz 1.329 17.00
