4101303/10 | 2293V WHRL RG11 95 1000
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

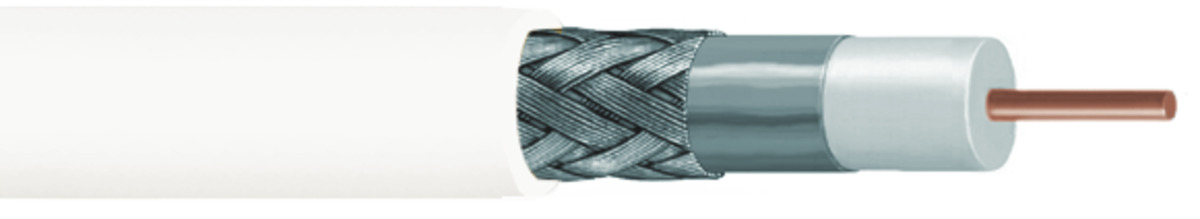

RG 11 Type 95% Braid Plenum Video Coaxial Cable, white jacket, 1000 ft (305 m) reel
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2293V |
| Cable Type | Series 11 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Center Conductor, specific | 0.0641 in per 1 strand |
| Diameter Over Dielectric | 7.061 mm | 0.278 in |
| Diameter Over Jacket, nominal | 8.788 mm | 0.346 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Shield (Braid) | 7.849 mm | 0.309 in |
| Diameter Over Shield (Tape) | 7.214 mm | 0.284 in |
| Jacket Thickness | 0.457 mm | 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm | 0.012 in |
| Center Conductor Gauge | 14 AWG |
| Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m | 16 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 9.514 ohms/km | 2.9 ohms/kft |
| Dielectric Strength, conductor to shield | 4000 Vdc |
| Jacket Spark Test Voltage | 5000 Vac |
| Nominal Velocity of Propagation (NVP) | 86 % |
| Structural Return Loss | 15 dB @ 1500–3000 MHz | 20 dB @ 10–1500 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Attenuation
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 0.300 | 0.090 |
| 10.0 MHz | 1.480 | 0.450 |
| 50.0 MHz | 2.950 | 0.900 |
| 100.0 MHz | 4.200 | 1.280 |
| 200.0 MHz | 6.070 | 1.850 |
| 400.0 MHz | 9.020 | 2.750 |
| 700.0 MHz | 12.860 | 3.920 |
| 900.0 MHz | 15.480 | 4.720 |
| 1000.0 MHz | 16.530 | 5.040 |
| 1450.0 MHz | 21.060 | 6.420 |
| 1800.0 MHz | 23.680 | 7.220 |
| 2200.0 MHz | 25.550 | 7.790 |
| 2500.0 MHz | 27.220 | 8.300 |
| 3000.0 MHz | 30.240 | 9.220 |
Material Specifications
| Center Conductor Material | Bare copper |
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 95 % |
| Shield (Braid) Material | Tinned copper |
| Shield (Tape) Material | Aluminum/Poly, bonded |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Plenum |
| Temperature Rating, UL | 75 °C | 167 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL | cETL |
Packaging and Weights
| Cable weight | 110.124 kg/km | 74 lb/kft |
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2293V |
| Cable Type | Series 11 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Center Conductor, specific | 0.0641 in per 1 strand |
| Diameter Over Dielectric | 7.061 mm | 0.278 in |
| Diameter Over Jacket, nominal | 8.788 mm | 0.346 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Shield (Braid) | 7.849 mm | 0.309 in |
| Diameter Over Shield (Tape) | 7.214 mm | 0.284 in |
| Jacket Thickness | 0.457 mm | 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm | 0.012 in |
| Center Conductor Gauge | 14 AWG |
| Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m | 16 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 9.514 ohms/km | 2.9 ohms/kft |
| Dielectric Strength, conductor to shield | 4000 Vdc |
| Jacket Spark Test Voltage | 5000 Vac |
| Nominal Velocity of Propagation (NVP) | 86 % |
| Structural Return Loss | 15 dB @ 1500–3000 MHz | 20 dB @ 10–1500 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Attenuation
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 0.300 | 0.090 |
| 10.0 MHz | 1.480 | 0.450 |
| 50.0 MHz | 2.950 | 0.900 |
| 100.0 MHz | 4.200 | 1.280 |
| 200.0 MHz | 6.070 | 1.850 |
| 400.0 MHz | 9.020 | 2.750 |
| 700.0 MHz | 12.860 | 3.920 |
| 900.0 MHz | 15.480 | 4.720 |
| 1000.0 MHz | 16.530 | 5.040 |
| 1450.0 MHz | 21.060 | 6.420 |
| 1800.0 MHz | 23.680 | 7.220 |
| 2200.0 MHz | 25.550 | 7.790 |
| 2500.0 MHz | 27.220 | 8.300 |
| 3000.0 MHz | 30.240 | 9.220 |
Material Specifications
| Center Conductor Material | Bare copper |
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 95 % |
| Shield (Braid) Material | Tinned copper |
| Shield (Tape) Material | Aluminum/Poly, bonded |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Plenum |
| Temperature Rating, UL | 75 °C | 167 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL | cETL |
Packaging and Weights
| Cable weight | 110.124 kg/km | 74 lb/kft |
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
