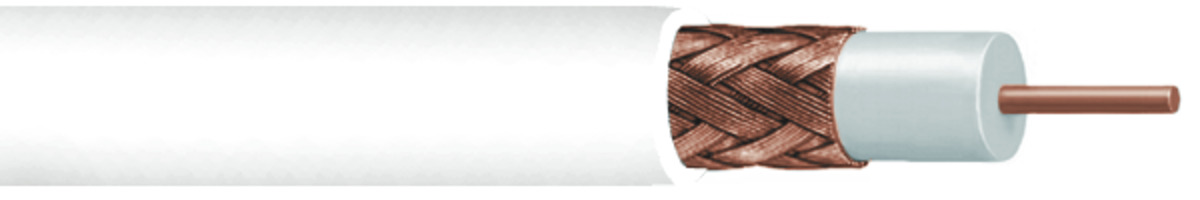

RG 6 Type 95% Braid Plenum Video Security Coaxial Cable, white jacket, 1000 ft (305 m) reel
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2277V |
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
| Supported Application | Security/CCTV |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Dielectric | 4.318 mm | 0.17 in |
| Diameter Over Jacket, nominal | 5.74 mm | 0.226 in |
| Diameter Over Jacket Tolerance | ±0.004 in |
| Diameter Over Shield (Tape) | 4.826 mm | 0.19 in |
| Jacket Thickness | 0.457 mm | 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm | 0.012 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 36 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m | 16 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 20.997 ohms/km | 6.4 ohms/kft |
| Dielectric Strength, conductor to shield | 2000 Vdc |
| Jacket Spark Test Voltage | 4000 Vac |
| Nominal Velocity of Propagation (NVP) | 84 % |
| Shield dc Resistance | 9.843 ohms/km | 3 ohms/kft |
| Structural Return Loss | 20 dB @ 10–300 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Attenuation
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 0.690 | 0.210 |
| 10.0 MHz | 2.130 | 0.650 |
| 100.0 MHz | 6.690 | 2.040 |
| 400.0 MHz | 14.630 | 4.460 |
| 700.0 MHz | 19.320 | 5.890 |
| 900.0 MHz | 24.500 | 7.470 |
| 1000.0 MHz | 26.310 | 8.020 |
Material Specifications
| Center Conductor Material | Bare copper |
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 92 % |
| Shield (Braid) Material | Bare copper |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Environmental Space | Plenum |
| Temperature Rating, UL | 60 °C | 140 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL | cETL |
Packaging and Weights
| Cable weight | 49.109 kg/km | 33 lb/kft |
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2277V |
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
| Supported Application | Security/CCTV |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Dielectric | 4.318 mm | 0.17 in |
| Diameter Over Jacket, nominal | 5.74 mm | 0.226 in |
| Diameter Over Jacket Tolerance | ±0.004 in |
| Diameter Over Shield (Tape) | 4.826 mm | 0.19 in |
| Jacket Thickness | 0.457 mm | 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm | 0.012 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 36 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m | 16 pF/ft |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 20.997 ohms/km | 6.4 ohms/kft |
| Dielectric Strength, conductor to shield | 2000 Vdc |
| Jacket Spark Test Voltage | 4000 Vac |
| Nominal Velocity of Propagation (NVP) | 84 % |
| Shield dc Resistance | 9.843 ohms/km | 3 ohms/kft |
| Structural Return Loss | 20 dB @ 10–300 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Attenuation
| Frequency | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
| 1.0 MHz | 0.690 | 0.210 |
| 10.0 MHz | 2.130 | 0.650 |
| 100.0 MHz | 6.690 | 2.040 |
| 400.0 MHz | 14.630 | 4.460 |
| 700.0 MHz | 19.320 | 5.890 |
| 900.0 MHz | 24.500 | 7.470 |
| 1000.0 MHz | 26.310 | 8.020 |
Material Specifications
| Center Conductor Material | Bare copper |
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 92 % |
| Shield (Braid) Material | Bare copper |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Environmental Space | Plenum |
| Temperature Rating, UL | 60 °C | 140 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL | cETL |
Packaging and Weights
| Cable weight | 49.109 kg/km | 33 lb/kft |
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
