DPJ-206-150

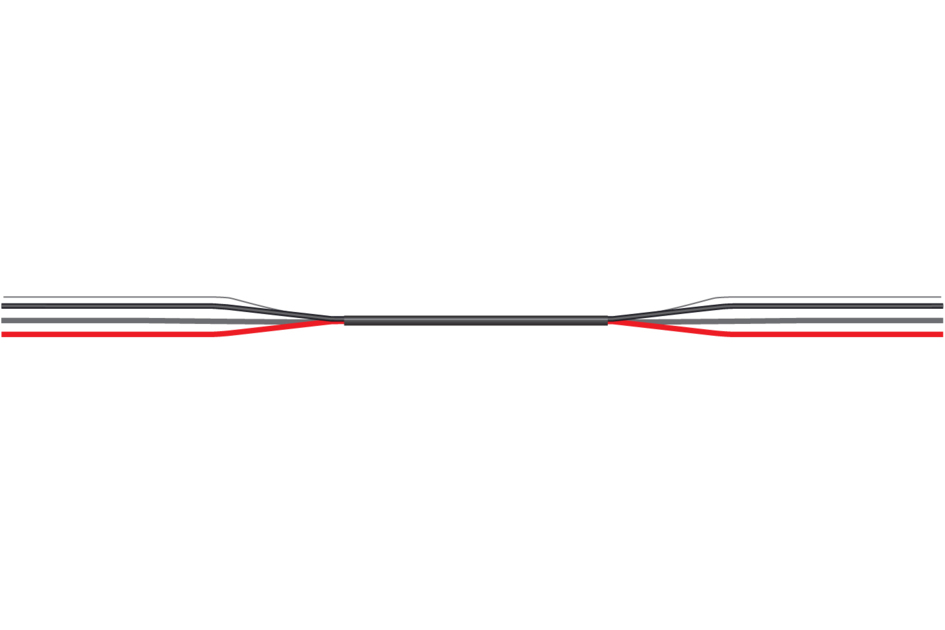

HELIAX® Power cable jumper, 2 conductor with ground and drain wire, shielded, one 6AWG Red conductor, one 6AWG Black conductor, 150 feet.

Specifications

Finish making your selections or clear them to view relevant specifications.

View Download

Find a Partner

Support

Specifications

Product Classification

Regional Availability	North America
Portfolio	CommScope®
Product Type	Power cable assembly
Product Series	DPJ
Ordering Note	CommScope® standard product in the United States and Canada

Cable Length	45.720 m \| 150 ft
Diameter Over Jacket, nominal	16.281 mm \| 0.641 in
Conductor Gauge, singles	6 AWG
Outer Shield (Braid) Gauge	36 AWG

Click on image to enlarge.

Safety Voltage Rating

600 V

Conductor Material	Tinned copper
Dielectric Material	PVC
Drain Wire Material	Tinned copper
Filler Material	Polypropylene
Ground Wire Material	Tinned copper
Insulation Material, singles	PVC
Jacket Material	PVC
Outer Shield (Braid) Coverage	65 %
Outer Shield (Braid) Material	Tinned copper
Outer Shield (Tape) Material	Aluminum/Poly, non-bonded

Operating Temperature	-40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space	UV resistant for outdoor and/or direct burial installations
Safety Standard	NEC Article 336 (Type TC)

Cable weight

312.514 kg/km | 210 lb/kft
