64674072-40 | 6467 4 072-40
- Available in:
- Australia/New Zealand

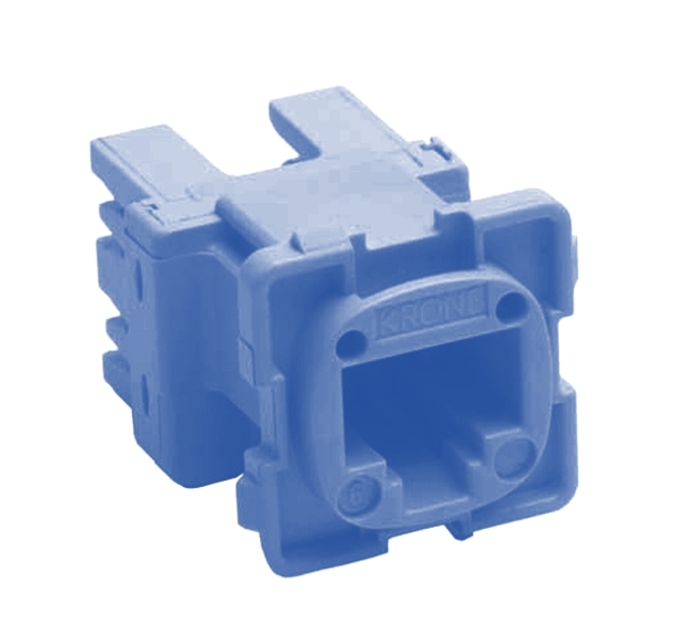

FMK Series Modular Jack, 8-position, RJ45, category 5e, T568A/B, bag of 10, blue
Specifications
Features and Benefits
- High speed data and voice transmission outlets
- Suitable for direct termination of 100Ω twisted pair insulated copper wires
- Compatible with the LSA-PLUS® insertion tool and 110 punchdown tool
Specifications
Product Classification
| Regional Availability | Australia/New Zealand |
| Product Type | Modular jack |
| Product Series | FMK |
General Specifications
| ANSI/TIA Category | 5e |
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | LSA-PLUS Punchdown tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D |
| Wiring | T568A | T568B |
Dimensions
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Material Specifications
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 2500 times |
Environmental Specifications
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 10 |
| Packaging Type | Bag |
Product Classification
| Regional Availability | Australia/New Zealand |
| Product Type | Modular jack |
| Product Series | FMK |
General Specifications
| ANSI/TIA Category | 5e |
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | LSA-PLUS Punchdown tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D |
| Wiring | T568A | T568B |
Dimensions
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Material Specifications
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 2500 times |
Environmental Specifications
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 10 |
| Packaging Type | Bag |
