H7FB-110-S

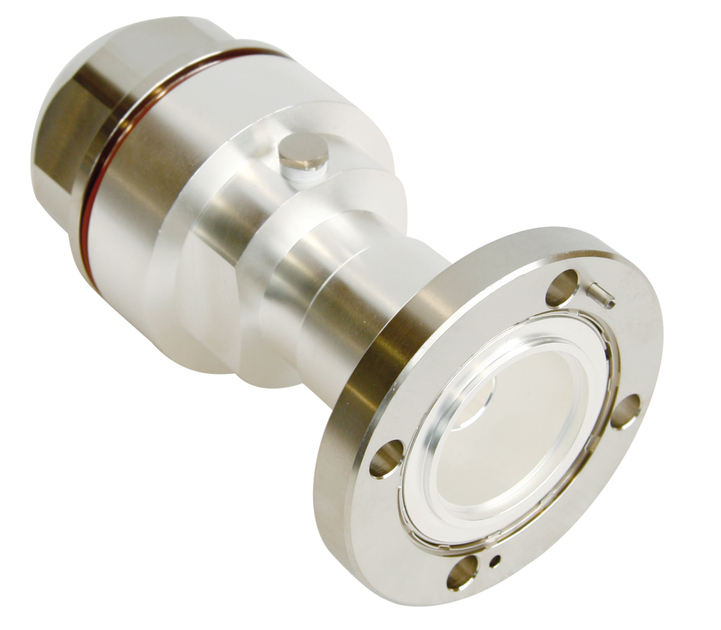

1-5/8 in EIA Female Flange with gas barrier for 1-5/8 in HJ7-50A air dielectric cable. Coupling Element, O-Ring, screw-set sold separately. Click-on: Related Products, Device connectors and Adapters
Specifications
Product Classification
| Product Type | Air coaxial connector |
| Product Brand | HELIAX® |
| Ordering Note | Gas pass version can be created by drilling out the PTFE dielectric |
General Specifications
| Body Style | Straight |
| Cable Family | HJ7-50A |
| Gas Barrier | Yes |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 1-5/8 in EIA Male Flange |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Tab-flare |
| Outer Contact Plating | Silver |
Dimensions
| Length | 140.97 mm | 5.55 in |
| Diameter | 88.392 mm | 3.48 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 4.9 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 11 kV |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Peak Power, maximum | 300 kW |
| RF Operating Voltage, maximum (vrms) | 3880 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–1000 MHz | 1.020 | 40.09 |
| 1000–2200 MHz | 1.040 | 34.16 |
| 2200–2700 MHz | 1.060 | 30.72 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.4 kg | 3.086 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Air coaxial connector |
| Product Brand | HELIAX® |
| Ordering Note | Gas pass version can be created by drilling out the PTFE dielectric |
General Specifications
| Body Style | Straight |
| Cable Family | HJ7-50A |
| Gas Barrier | Yes |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 1-5/8 in EIA Male Flange |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Tab-flare |
| Outer Contact Plating | Silver |
Dimensions
| Length | 140.97 mm | 5.55 in |
| Diameter | 88.392 mm | 3.48 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 4.9 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 11 kV |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Peak Power, maximum | 300 kW |
| RF Operating Voltage, maximum (vrms) | 3880 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–1000 MHz | 1.020 | 40.09 |
| 1000–2200 MHz | 1.040 | 34.16 |
| 2200–2700 MHz | 1.060 | 30.72 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.4 kg | 3.086 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
