300APNF-BH-CR

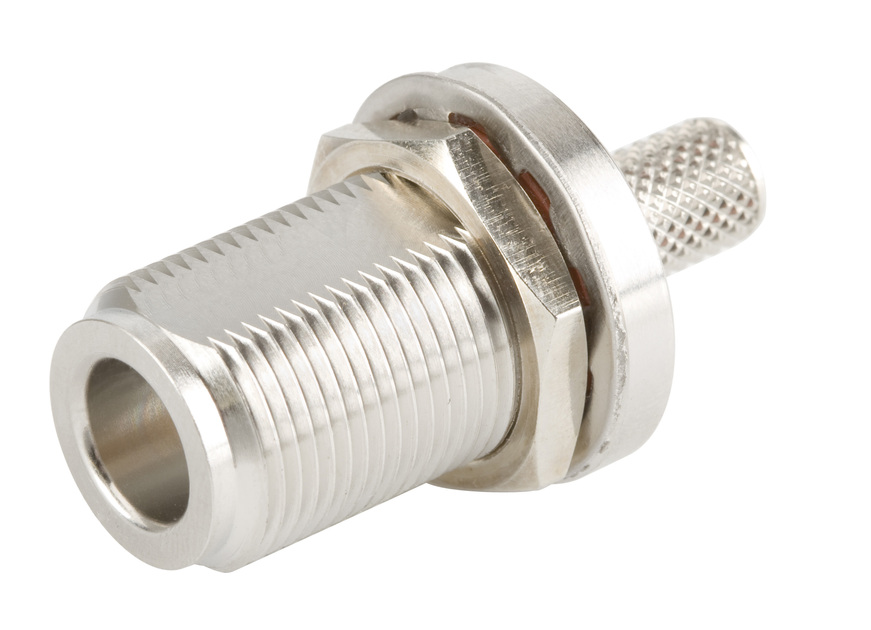

Type N Female Bulkhead for CNT-300 braided cable
Specifications
Specifications
Product Classification
| Product Type | Braided cable connector |
| Product Brand | CNT® |
General Specifications
| Body Style | Bulkhead |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 22 mm | 0.866 in |
| Length | 42.7 mm | 1.681 in |
| Diameter | 22 mm | 0.866 in |
| Nominal Size | 0.300 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Average Power at Frequency | 360.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.065 | 30.05 |
| 3000–6000 MHz | 1.082 | 28.10 |
Mechanical Specifications
| Connector Retention Tensile Force | 220 N | 49.458 lbf |
| Connector Retention Torque | 0.45 N-m | 3.983 in lb |
| Insertion Force | 28 N | 6.295 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Weight, net | 44.35 g | 0.098 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Braided cable connector |
| Product Brand | CNT® |
General Specifications
| Body Style | Bulkhead |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 22 mm | 0.866 in |
| Length | 42.7 mm | 1.681 in |
| Diameter | 22 mm | 0.866 in |
| Nominal Size | 0.300 in |
Electrical Specifications
| Average Power at Frequency | 360.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.065 | 30.05 |
| 3000–6000 MHz | 1.082 | 28.10 |
Mechanical Specifications
| Connector Retention Tensile Force | 220 N | 49.458 lbf |
| Connector Retention Torque | 0.45 N-m | 3.983 in lb |
| Insertion Force | 28 N | 6.295 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Weight, net | 44.35 g | 0.098 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Documentation & Downloads
Installation Instruction
Product Specification
Warranty
Installation Instruction
Product Compliance Documentation
Product Specification
Warranty
