This product was discontinued on: July 17, 2018

For other alternatives, please contact us for more information.

1 Replacement products available

300BPNR-C-G
Type N Male Right Angle for CNT-300 braided cable

300PNR-C-NC

Type N Male Right Angle for CNT-300 and 5D-FB braided cable

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

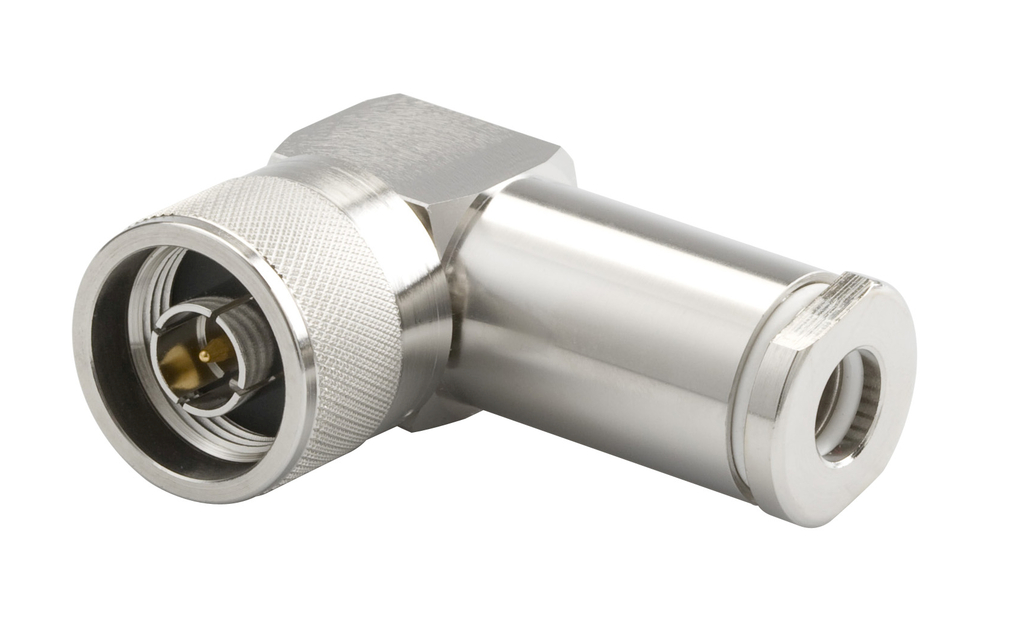

Product Type	Braided cable connector
Product Brand	CNT®

General Specifications

Body Style	Right angle
Inner Contact Attachment Method	Captivated
Inner Contact Plating	Gold
Interface	N Male
Outer Contact Attachment Method	Clamp
Outer Contact Plating	Trimetal

Dimensions

Height	34.41 mm \| 1.355 in
Width	20.24 mm \| 0.797 in
Length	45.27 mm \| 1.782 in
Nominal Size	0.300 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Insertion Loss, typical	0.05 dB
Average Power at Frequency	360.0 W @ 900 MHz
Cable Impedance	50 ohm
Connector Impedance	50 ohm
dc Test Voltage	2000 V
Inner Contact Resistance, maximum	1 mOhm
Insulation Resistance, minimum	5000 mOhm
Operating Frequency Band	0 – 6000 MHz
Outer Contact Resistance, maximum	0.25 mOhm
Peak Power, maximum	10 kW
RF Operating Voltage, maximum (vrms)	707 V
Shielding Effectiveness	90 dB

Return Loss/VSWR

Frequency Band	VSWR	Return Loss (dB)
0–960 MHz	1.020	40.09
960–1000 MHz	1.025	38.17
1000–2000 MHz	1.106	25.97
2000–6000 MHz	1.671	12.00

Mechanical Specifications

Connector Retention Tensile Force	220 N \| 49.458 lbf
Connector Retention Torque	0.45 N-m \| 3.983 in lb
Coupling Nut Proof Torque	1.7 N-m \| 15.046 in lb
Coupling Nut Proof Torque Method	IEC 61169-16:9.3.6
Coupling Nut Retention Force	450 N \| 101.164 lbf
Coupling Nut Retention Force Method	IEC 61169-16:9.3.11
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-16:9.5
Mechanical Shock Test Method	IEC 60068-2-27

Environmental Specifications

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature	-65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature	20 °C \| 68 °F
Average Power, Ambient Temperature	40 °C \| 104 °F
Average Power, Inner Conductor Temperature	100 °C \| 212 °F
Climatic Sequence Test Method	IEC 60068-1
Corrosion Test Method	IEC 60068-2-11
Damp Heat Steady State Test Method	IEC 60068-2-3
Immersion Depth	1 m
Immersion Test Mating	Mated
Immersion Test Method	IEC 60529:2001, IP68
Thermal Shock Test Method	IEC 60068-2-14
Vibration Test Method	IEC 60068-2-6

Packaging and Weights

Weight, net

90.42 g | 0.199 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
