TA-NMHF

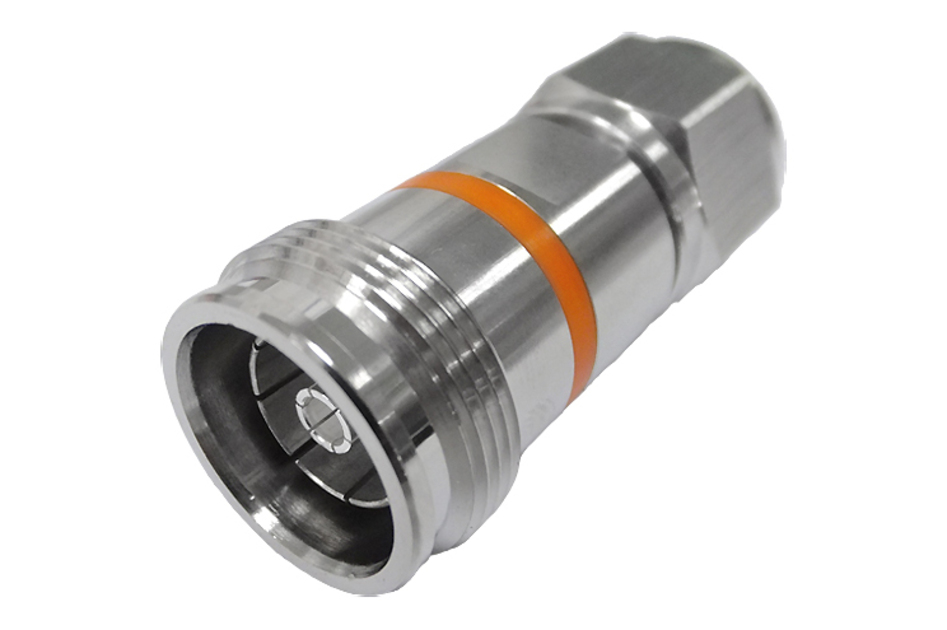

N Male to 4.3-10 Female Low-PIM Adapter

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Adapter

General Specifications

Body Style Straight
Inner Contact Plating Silver
Interface N Male
Interface 2 4.3-10 Female
Mounting Angle Straight
Outer Contact Plating Trimetal

Dimensions

Length 45.49 mm | 1.791 in
Diameter 20.25 mm | 0.797 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

3rd Order IMD at Frequency -163 -dBc @ 1800 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Connector Impedance 50 ohm
dc Test Voltage 2500 V
Inner Contact Resistance, maximum 1 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1 mOhm

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
0–3000 MHz 1.032 36.06
3000–6000 MHz 1.083 27.99

Mechanical Specifications

Coupling Nut Proof Torque 1.7 N-m | 15.046 in lb
Coupling Nut Retention Force 450 N | 101.164 lbf
Interface Durability 100 cycles
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Climatic Sequence Test Method IEC 60068-1
Corrosion Test Method IEC 60068-2-11
Damp Heat Steady State Test Method IEC 60068-2-3
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and Weights

Weight, net 57.42 g | 0.127 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant, Compliant/Exempted

Product Classification

Product Type Adapter

General Specifications

Body Style Straight
Inner Contact Plating Silver
Interface N Male
Interface 2 4.3-10 Female
Mounting Angle Straight
Outer Contact Plating Trimetal

Dimensions

Length 45.49 mm | 1.791 in
Diameter 20.25 mm | 0.797 in

Electrical Specifications

3rd Order IMD at Frequency -163 -dBc @ 1800 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Connector Impedance 50 ohm
dc Test Voltage 2500 V
Inner Contact Resistance, maximum 1 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1 mOhm

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
0–3000 MHz 1.032 36.06
3000–6000 MHz 1.083 27.99

Mechanical Specifications

Coupling Nut Proof Torque 1.7 N-m | 15.046 in lb
Coupling Nut Retention Force 450 N | 101.164 lbf
Interface Durability 100 cycles
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Climatic Sequence Test Method IEC 60068-1
Corrosion Test Method IEC 60068-2-11
Damp Heat Steady State Test Method IEC 60068-2-3
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and Weights

Weight, net 57.42 g | 0.127 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant, Compliant/Exempted
