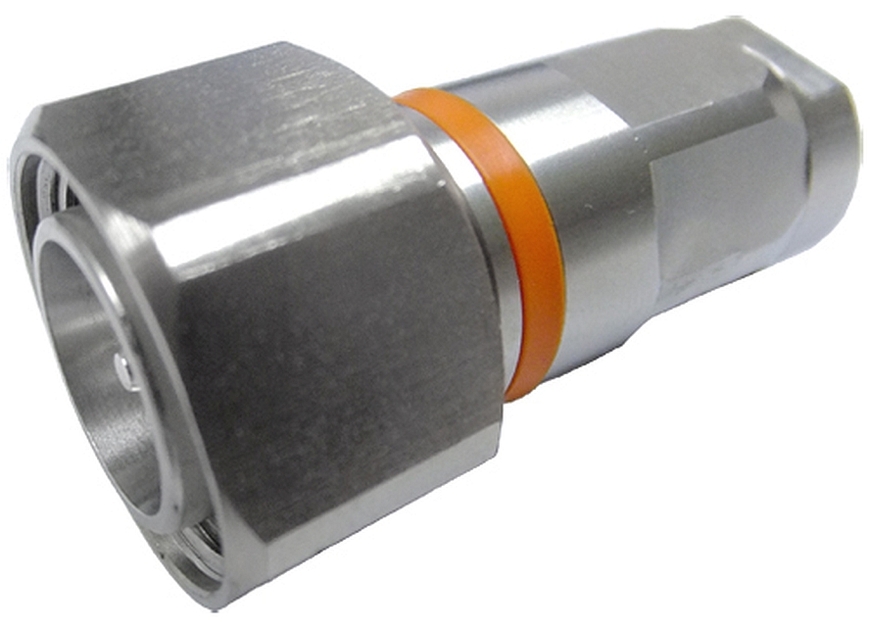

L1HM-D

4.3-10 Male for 1/4 in LDF1-50 cable

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF1-50 | LDF1-50 | MLOC

General Specifications

Body Style Straight
Cable Family LDF1-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 4.3-10 Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal

Dimensions

Length 46.48 mm | 1.830 in
Diameter 23.88 mm | 0.940 in
Nominal Size 1/4 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

3rd Order IMD at Frequency -116 dBm @ 1800 MHz
3rd Order IMD Dynamic Test Method Two +43 dBm carriers
3rd Order IMD Dynamic, typical -116 dBm
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 600.0 W @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2200 V
Inner Contact Resistance, maximum 0.8 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 12000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 10 kW
RF Operating Voltage, maximum (vrms) 707 V
Shielding Effectiveness -110 dB

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
45–2700 MHz 1.041 33.94
2700–4000 MHz 1.052 31.92
4000–6000 MHz 1.106 25.96

Mechanical Specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 10 N-m | 88.507 in lb
Coupling Nut Retention Force 449.27 N | 101.000 lbf
Interface Durability 100 cycles
Interface Durability Method IEC 61169-4:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP66

Packaging and Weights

Weight, net 61.51 g | 0.136 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF1-50 | LDF1-50 | MLOC

General Specifications

Body Style Straight
Cable Family LDF1-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 4.3-10 Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal

Dimensions

Length 46.48 mm | 1.830 in
Diameter 23.88 mm | 0.940 in
Nominal Size 1/4 in

Electrical Specifications

3rd Order IMD at Frequency -116 dBm @ 1800 MHz
3rd Order IMD Dynamic Test Method Two +43 dBm carriers
3rd Order IMD Dynamic, typical -116 dBm
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 600.0 W @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2200 V
Inner Contact Resistance, maximum 0.8 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 12000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 10 kW
RF Operating Voltage, maximum (vrms) 707 V
Shielding Effectiveness -110 dB

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
45–2700 MHz 1.041 33.94
2700–4000 MHz 1.052 31.92
4000–6000 MHz 1.106 25.96

Mechanical Specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 10 N-m | 88.507 in lb
Coupling Nut Retention Force 449.27 N | 101.000 lbf
Interface Durability 100 cycles
Interface Durability Method IEC 61169-4:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP66

Packaging and Weights

Weight, net 61.51 g | 0.136 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
