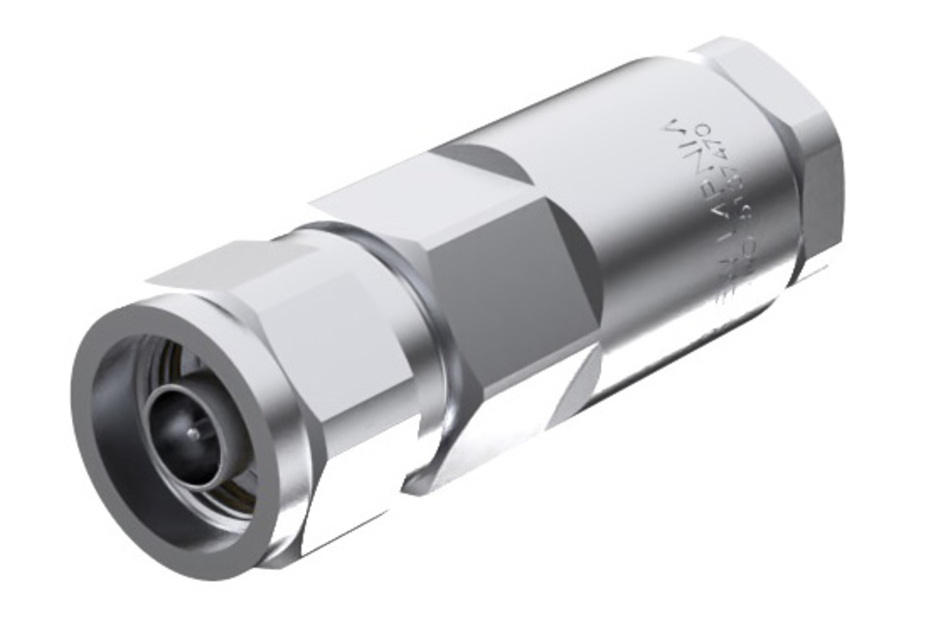

L4PNM-H
Type N Male for 1/2 in LDF4-50A cable. Only available through distribution
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | LDF4-50A |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Body Style | Straight |
| Cable Family | LDF4-50A |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | N Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 66.04 mm | 2.600 in |
| Diameter | 25.4 mm | 1.000 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| Insertion Loss Coefficient, typical | 0.05 |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 2 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 3.5–4.4 GHz | 1.152 | 23.02 |
| 45–920 MHz | 1.036 | 35.05 |
| 920–2700 MHz | 1.058 | 31.00 |
| 2700–3500 MHz | 1.106 | 25.96 |
| 4400–5300 MHz | 1.196 | 20.99 |
| 5300–6200 MHz | 1.222 | 20.01 |
| 6200–8800 MHz | 1.290 | 18.00 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 5.42 N-m | 47.998 in lb |
| Coupling Nut Proof Torque | 4.52 N-m | 39.997 in lb |
| Coupling Nut Retention Force | 444.82 N | 100.000 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
Environmental Specifications
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Packaging and Weights
| Weight, net | 108.86 g | 0.24 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
