This product was discontinued on: October 27, 2008

For other alternatives, please contact us for more information.

0 Replacement products available

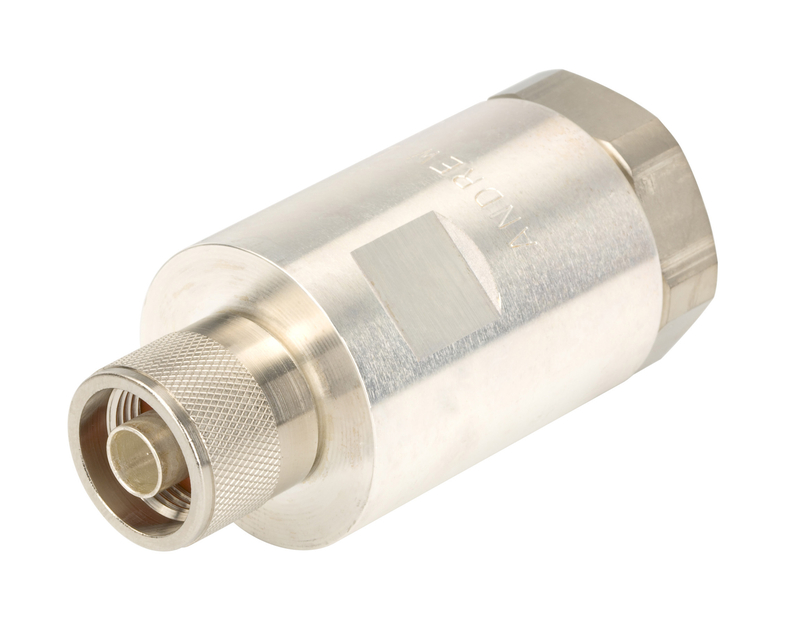

L5PNM-7570

Type N Female for 7/8 in LDF5-50A cable; Type N Male for 7/8 in LDF5-75 cable

Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Wireless and radiating connector
Product Brand HELIAX®

General Specifications

Body Style Straight
Cable Family LDF5-75
Inner Contact Attachment Method Solder
Inner Contact Plating Silver
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Length 73.66 mm | 2.900 in
Diameter 35.56 mm | 1.400 in
Nominal Size 7/8 in

Electrical Specifications

Insertion Loss Coefficient, typical 0.05
Cable Impedance 75 ohm
Connector Impedance 70 ohm
dc Test Voltage 2000 V
Inner Contact Resistance, maximum 1.5 mOhm
Operating Frequency Band 0 – 2000 MHz
Outer Contact Resistance, maximum 1.4 mOhm
Peak Power, maximum 10 kW
RF Operating Voltage, maximum (vrms) 707 V

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
45–1000 MHz 1.083 27.99
1000–2000 MHz 1.222 20.01

Mechanical Specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 889.64 N | 200.000 lbf
Connector Retention Torque 8.14 N-m | 72.001 in lb
Coupling Nut Proof Torque 4.52 N-m | 39.997 in lb
Coupling Nut Retention Force 444.82 N | 100.000 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5

Environmental Specifications

Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F

Packaging and Weights

Weight, net 246 g | 0.542 lb
