H550 | RUCKUS H550 Indoor Access Point
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
High-End Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate, Switch and Embedded IoT
Features and Benefits
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.

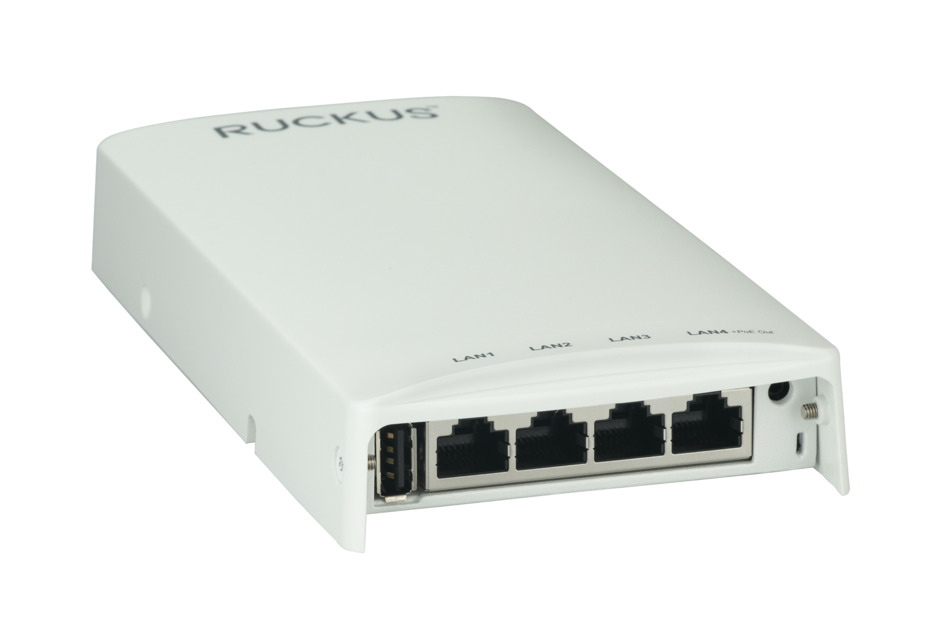

The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 16 |
| Antenna Gain | Up to 1 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
| Ethernet Ports | 5 x 1 GbE |
| IoT Support | IoT Onboard (dual-concurrent) |
| Number of Radios | Dual-Radio |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Combined Max PHY Rate | 1774 Mb/s |
| Radio Chains and Streams | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -100 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality |
| Venue Sub-Type | Guest Rooms | Residence Hall |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz |
| Wi-Fi Generation | Wi-Fi 6 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
Environmental Specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 16 |
| Antenna Gain | Up to 1 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
| Ethernet Ports | 5 x 1 GbE |
| IoT Support | IoT Onboard (dual-concurrent) |
| Number of Radios | Dual-Radio |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Combined Max PHY Rate | 1774 Mb/s |
| Radio Chains and Streams | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -100 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality |
| Venue Sub-Type | Guest Rooms | Residence Hall |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz |
| Wi-Fi Generation | Wi-Fi 6 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
Environmental Specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
