860663466 | Radio Enclosure for Nokia AHLBBA and AHFIB

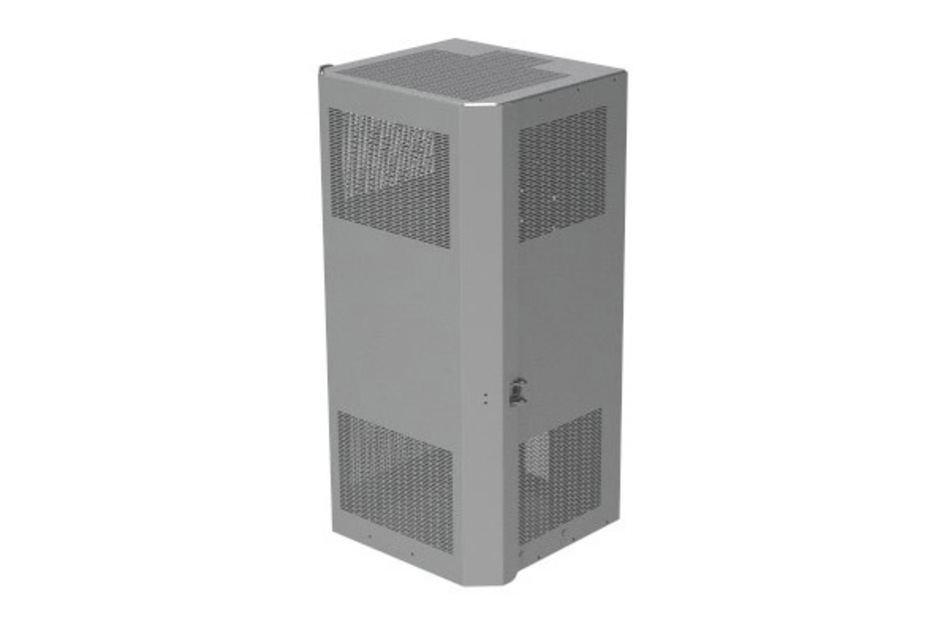

Middle of Pole Micro Concealment Enclosure for AHLBBA and AHFIB Nokia Radios

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of 860663466 | Radio Enclosure for Nokia AHLBBA and AHFIB by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Enclosure Color

Part Number	Enclosure Color
No configured items found.

Features and Benefits

Includes Standard Mounting kit for through bolt, clamp, and banding

Available After Market KIts, ordered separate:
-860649584S-xx 5" Standoff for wood poles
-860649584ST-xx Standoff for Round Tapered Poles

Intended to be used with high powered remote radio heads on standard street lighting and wood pole structures where low-visual impact is desired
Enables attractive concealment and securing of all site equipment on standard street lighting structures

Specifications

Product Classification

Product Type	Mid pole
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Fairfax Brown (SW 2856) \| Faux Concrete \| Federal Park Brown \| Green (RAL 6005) \| Metallic Silver \| Umbra Grey (RAL 7022) \| White (RAL 9010)
Cooling	Passive Cooling
Mounting Options	Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	CCI PSU-1200W-48-N
Radio Compatibility, Nokia	AHFIB \| AHLBBA
Radios Included	None

Dimensions

Height	1117.6 mm \| 44 in
Width	533.4 mm \| 21 in
Depth	508 mm \| 20 in

Electrical Specifications

Power/Fiber Input

Trade size knockouts at rear side

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume	0.303 m³ \| 10.7 ft³
Weight (loaded)	136.078 kg \| 300 lb
Weight (unloaded)	49.895 kg \| 110 lb
