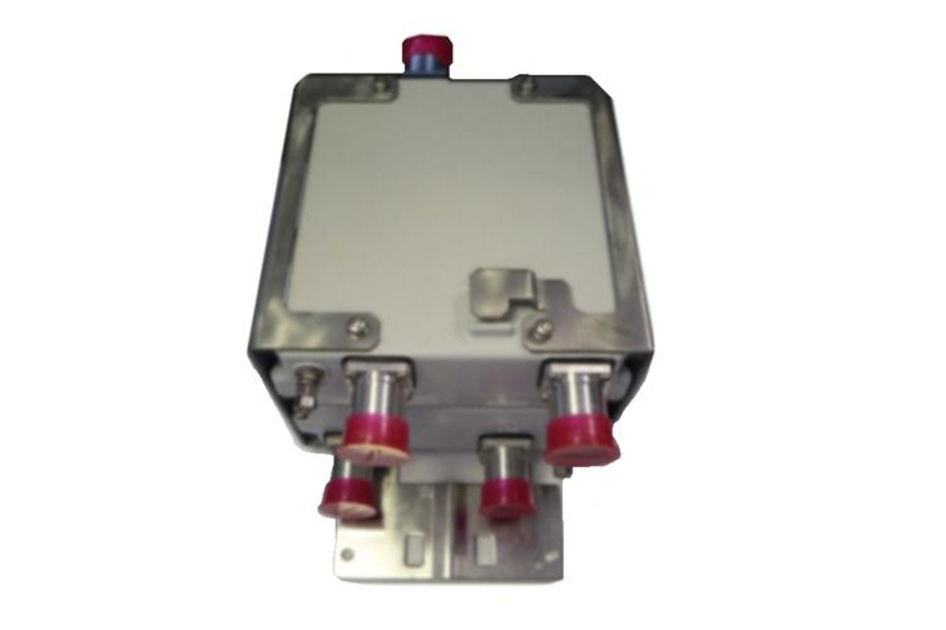

CBC1921Y-DS-2X | E15S07P39
Diplexer Stacked PCS/AWS 1-4, DC Sense, AISG Compatible 1.1-2.0
Specifications
Specifications
Product Classification
| Product Type | Diplexer |
General Specifications
| Product Family | CBC1921Y |
| Common Port Label | ANT |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 192 mm | 7.559 in |
| Width | 194 mm | 7.638 in |
| Depth | 140 mm | 5.512 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through, combiner | dc Sensing |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Voltage | 7–30 Vdc |
Electrical Specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | AWS | PCS |
| License Band | AWS 1700, Band Pass | PCS 1900, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 1695–1780 2110–2200 | 1850–1990 |
| Insertion Loss, maximum, dB | 0.35 | 0.25 |
| Insertion Loss, typical, dB | 0.30 | 0.15 |
| Total Group Delay, maximum, ns | 25 | 25 |
| Return Loss, minimum, dB | 19 | 19 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, minimum, dB | 50 | 50 |
| Isolation, typical, dB | 53 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -153 | -153 |
| 3rd Order PIM Test Method | 1 x 20 W AWS CW tone 1 x 20 W PCS CW tone | 2 x 20 W CW tones |
Block Diagram
| Click on image to enlarge. |
Logic Table
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
Packaging and Weights
| Volume | 5.2 L |
| Weight, net | 7.5 kg | 16.535 lb |
Product Classification
| Product Type | Diplexer |
General Specifications
| Product Family | CBC1921Y |
| Common Port Label | ANT |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 192 mm | 7.559 in |
| Width | 194 mm | 7.638 in |
| Depth | 140 mm | 5.512 in |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through, combiner | dc Sensing |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Voltage | 7–30 Vdc |
Electrical Specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | AWS | PCS |
| License Band | AWS 1700, Band Pass | PCS 1900, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 1695–1780; 2110–2200 | 1850–1990 |
| Insertion Loss, maximum, dB | 0.35 | 0.25 |
| Insertion Loss, typical, dB | 0.30 | 0.15 |
| Total Group Delay, maximum, ns | 25 | 25 |
| Return Loss, minimum, dB | 19 | 19 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, minimum, dB | 50 | 50 |
| Isolation, typical, dB | 53 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -153 | -153 |
| 3rd Order PIM Test Method | 1 x 20 W AWS CW tone; 1 x 20 W PCS CW tone | 2 x 20 W CW tones |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
Packaging and Weights
| Volume | 5.2 L |
| Weight, net | 7.5 kg | 16.535 lb |
