CBC71921-DF | E11F05P64

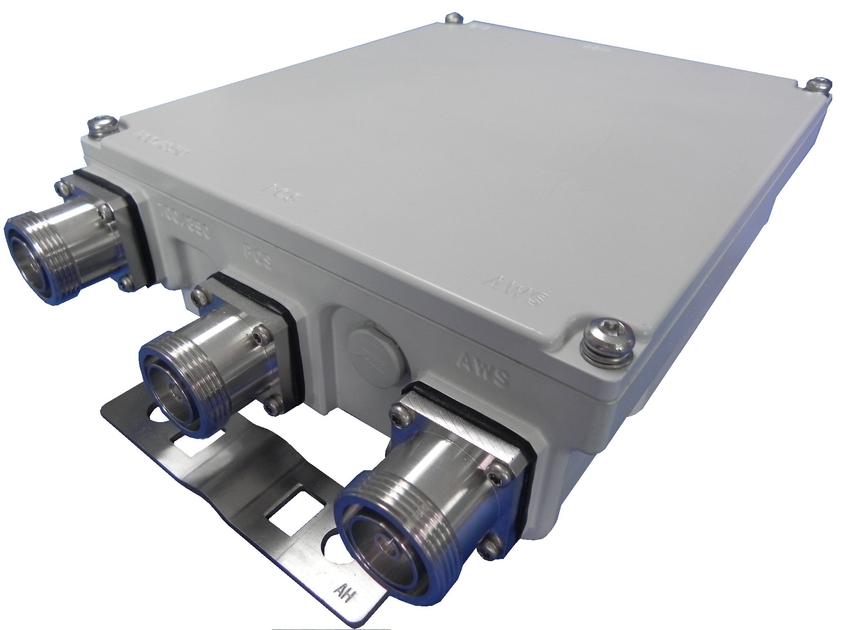

Triplexer 700–750 and Cellular/PCS/AWS
Specifications
Specifications
Product Classification
| Product Type | Triplexer |
General Specifications
| Product Family | CBC71921 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 210 mm | 8.268 in |
| Width | 182 mm | 7.165 in |
| Depth | 62 mm | 2.441 in |
| Ground Screw Diameter | 6.35 mm | 0.25 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | AWS 1700 | CEL 850 | LMR 750 | LMR 800 | PCS 1900 | USA 700 | USA 750 |
Electrical Specifications, Common Port
| Composite Power, RMS | 500 W |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical Specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 700/850 | PCS | AWS |
| License Band | APT 700, Band Pass CEL 850, Band Pass LMR 750, Band Pass LMR 800, Band Pass USA 700, Band Pass USA 750, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 698–894 | 1850–1990 | 1710–1755 2110–2155 |
| Insertion Loss, typical, dB | 0.30 | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 20 | 20 | 20 |
| Return Loss, minimum, dB | 22 | 22 | 22 |
| Return Loss, typical, dB | 24 | 24 | 24 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 500 | 500 | 500 |
| Input Power, PEP, maximum, W | 5,000 | 5,000 | 5,000 |
| 3rd Order PIM, typical, dBc | -153 | -153 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Block Diagram
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | 5%–100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Volume | 2.4 L |
| Weight, without mounting hardware | 3.5 kg | 7.716 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Triplexer |
General Specifications
| Product Family | CBC71921 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 210 mm | 8.268 in |
| Width | 182 mm | 7.165 in |
| Depth | 62 mm | 2.441 in |
| Ground Screw Diameter | 6.35 mm | 0.25 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | AWS 1700 | CEL 850 | LMR 750 | LMR 800 | PCS 1900 | USA 700 | USA 750 |
Electrical Specifications, Common Port
| Composite Power, RMS | 500 W |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical Specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 700/850 | PCS | AWS |
| License Band | APT 700, Band Pass; CEL 850, Band Pass; LMR 750, Band Pass; LMR 800, Band Pass; USA 700, Band Pass; USA 750, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 698–894 | 1850–1990 | 1710–1755; 2110–2155 |
| Insertion Loss, typical, dB | 0.30 | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 20 | 20 | 20 |
| Return Loss, minimum, dB | 22 | 22 | 22 |
| Return Loss, typical, dB | 24 | 24 | 24 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 500 | 500 | 500 |
| Input Power, PEP, maximum, W | 5,000 | 5,000 | 5,000 |
| 3rd Order PIM, typical, dBc | -153 | -153 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | 5%–100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Volume | 2.4 L |
| Weight, without mounting hardware | 3.5 kg | 7.716 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
