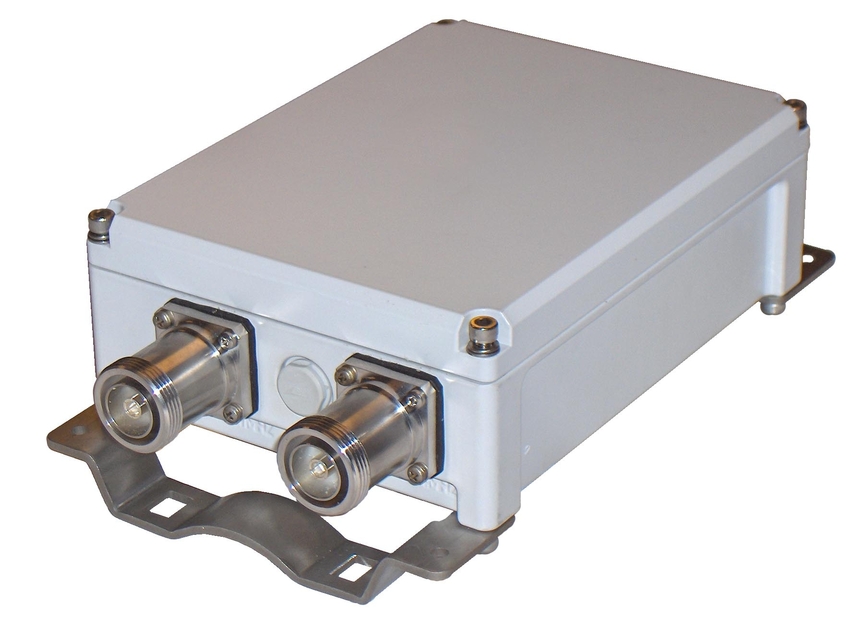

CBC78-DF-8-DCB | E15V95P05

Crossband Coupler, 698–787 MHz/Cellular, dc pass on 698–787 MHz port

Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Coupler

General Specifications

Product Family CBC78
Color Gray
Common Port Label COMM
Modularity 1-Single
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 7-16 DIN Female
RF Connector Interface Body Style Long neck

Dimensions

Height 200 mm | 7.874 in
Width 150 mm | 5.906 in
Depth 66.5 mm | 2.618 in
Ground Screw Diameter 6.35 mm | 0.25 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass CEL 850 | USA 700 | USA 750

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through, combiner Branch 1
dc/AISG Pass-through, demultiplexer Branch 1
Lightning Surge Current 10 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications

Sub-module 1 1
Branch 1 2
Port Designation 698-787 824-894
License Band USA 700, Band Pass
USA 750, Band Pass
CEL 850, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 698–787 824–894
Insertion Loss, maximum, dB 0.25 0.25
Total Group Delay, maximum, ns 25 25
Return Loss, minimum, dB 22 22
Return Loss, typical, dB 24 24
Isolation, minimum, dB 50 50
Input Power, RMS, maximum, W 500 500
Input Power, PEP, maximum, W 5,000 5,000
3rd Order PIM, typical, dBc -153 -153
3rd Order PIM Test Method 2 x 20 W CW tones 2 x 20 W CW tones

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity 5%–100%
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Volume 2 L
Weight, net 3 kg | 6.614 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Coupler

General Specifications

Product Family CBC78
Color Gray
Common Port Label COMM
Modularity 1-Single
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 7-16 DIN Female
RF Connector Interface Body Style Long neck

Dimensions

Height 200 mm | 7.874 in
Width 150 mm | 5.906 in
Depth 66.5 mm | 2.618 in
Ground Screw Diameter 6.35 mm | 0.25 in

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass CEL 850 | USA 700 | USA 750

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through, combiner Branch 1
dc/AISG Pass-through, demultiplexer Branch 1
Lightning Surge Current 10 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications

Sub-module 1 1
Branch 1 2
Port Designation 698-787 824-894
License Band USA 700, Band Pass; USA 750, Band Pass CEL 850, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 698–787 824–894
Insertion Loss, maximum, dB 0.25 0.25
Total Group Delay, maximum, ns 25 25
Return Loss, minimum, dB 22 22
Return Loss, typical, dB 24 24
Isolation, minimum, dB 50 50
Input Power, RMS, maximum, W 500 500
Input Power, PEP, maximum, W 5,000 5,000
3rd Order PIM, typical, dBc -153 -153
3rd Order PIM Test Method 2 x 20 W CW tones 2 x 20 W CW tones

Environmental Specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity 5%–100%
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Volume 2 L
Weight, net 3 kg | 6.614 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
