This product will be discontinued on: December 31, 2024

For other alternatives, please contact us for more information.

1 Replacement products available

E12F03P88

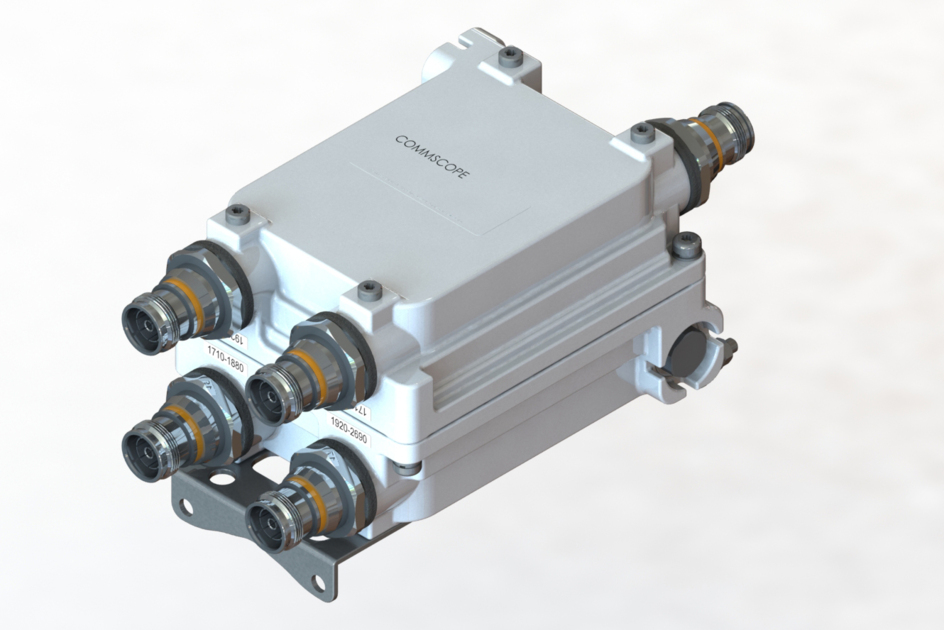

Twin Diplexer, 1800/2100-2600, dc block all ports, with 4.3-10 connectors

E14F06P47

Twin Diplexer, 1350–1880 MHz/1920–2690 MHz, DC Block, with 4.3-10 connectors

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Industry leading PIM performance
New 4.3-10 connectors for improved PIM performance and size reduction
dc/AISG blocking on all ports
Designed for network modernization application, introduction of LTE1400 on existing site

Specifications

Product Classification

Product Type

Diplexer

General Specifications

Color	Gray
Modularity	2-Twin
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	4.3-10 Female

Dimensions

Height	88 mm \| 3.465 in
Width	138 mm \| 5.433 in
Depth	141.5 mm \| 5.571 in
Ground Screw Diameter	5 mm \| 0.197 in
Mounting Pipe Diameter Range	42.6–122 mm

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance

50 ohm

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method	No dc/AISG pass-through
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical Specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	PORT 1 1350-1880	PORT 2 1920-2690

Electrical Specifications, Band Pass

Frequency Range, MHz	1350–1880	1920–2690
Insertion Loss, typical, dB	0.25	0.20
Return Loss, typical, dB	22	22
Isolation, typical, dB	40	40
Input Power, RMS, maximum, W	100	100
Input Power, PEP, maximum, W	1,000	1,000
3rd Order PIM, typical, dBc	-157	-157
3rd Order PIM Test Method	Two +43 dBm carriers	Two +43 dBm carriers

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Environmental Test Method	ETSI EN 300 019-1-4
Ingress Protection Test Method	IEC 60529:2001, IP67

Packaging and Weights

Included	Mounting hardware
Volume	1.7 L
Weight, net	3 kg \| 6.614 lb
Weight, without mounting hardware	2.5 kg \| 5.512 lb
