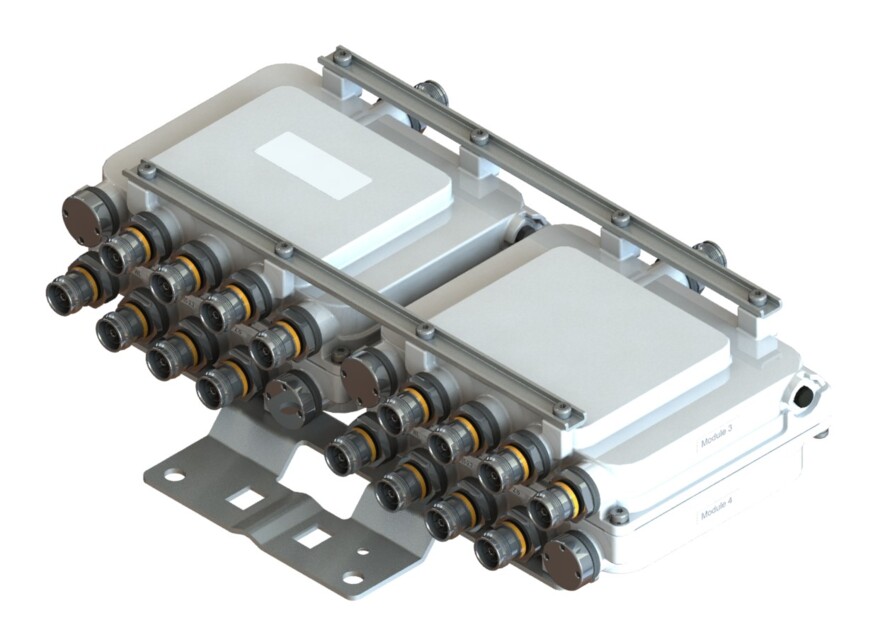

Quad Quadplexer 617-960/1350-2200/2300-2400/2496-2700 MHz, 4.3-10 connectors,dc bypass on all ports

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Industry leading PIM performance
Designed for network modernization application, introduction of LTE2300 and LTE2600 on existing site
New 4.3-10 connectors for improved PIM performance and size reduction
Suitable for feeders cables reduction

Specifications

Product Classification

Product Type

Quadplexer

General Specifications

Color	Gray
Modularity	4-Quad
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	4.3-10 Female

Dimensions

Height	88 mm \| 3.465 in
Width	386 mm \| 15.197 in
Depth	152 mm \| 5.984 in
Mounting Pipe Diameter Range	43–122 mm

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
License Band, Band Pass	APT 700 \| CEL 850 \| CEL 900 \| DCS 1800 \| EDD 800 \| IMT 2100 \| IMT 2600 \| LMR 800 \| LMR 900 \| SDL 1400 \| TDD 2300 \| USA 600

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through, combiner	Branch 1 \| Branch 2 \| Branch 3 \| Branch 4
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2 \| Branch 3 \| Branch 4
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical Specifications, AISG

AISG Carrier	2176 KHz ± 100 ppm
Insertion Loss, maximum	0.1 dB
Return Loss, minimum	18 dB

Electrical Specifications

Sub-module	1 \| 2	1 \| 2	1 \| 2	1 \| 2
Branch	1	2	3	4
Port Designation	PORT 1 617-960	PORT 2 1350-2200	PORT 3 2300-2400	PORT 4 2496-2700
License Band	APT 700, Band Pass CEL 850, Band Pass CEL 900, Band Pass EDD 800, Band Pass LMR 750, Band Pass LMR 800, Band Pass LMR 900, Band Pass USA 600, Band Pass	DCS 1800, Band Pass IMT 2100, Band Pass LMR 900, Band Pass PDC 1500, Band Pass SDL 1400, Band Pass	TDD 2300, Band Pass	IMT 2600, Band Pass TDD 2600, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz	617–960	1350–2200	2300–2400	2496–2700
Insertion Loss, typical, dB	0.15	0.10	0.20	0.15
Return Loss, typical, dB	20	20	20	20
Isolation, typical, dB	38	38	38	38
Input Power, RMS, maximum, W	125	125	125	125
Input Power, PEP, maximum, W	1,250	1,250	1,250	1,250
3rd Order PIM, typical, dBc	-155	-155	-155	-155
3rd Order PIM Test Method	Two +43 dBm carriers	Two +43 dBm carriers	Two +43 dBm carriers	Two +43 dBm carriers

Block Diagram

Click on image to enlarge.

Mechanical Specifications

Wind Speed, maximum

200 km/h (124 mph)

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Environmental Test Method	ETSI EN 300 019-1-4
Ingress Protection Test Method	IEC 60529:2001, IP67
Vibration Test Method	IEC 60068-2-6

Packaging and Weights

Included	Mounting hardware
Volume	5.2 L
Weight, with mounting hardware	8.45 kg \| 18.629 lb
Weight, without mounting hardware	7.5 kg \| 16.535 lb

Product Classification

Product Type

Quadplexer

General Specifications

Color	Gray
Modularity	4-Quad
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	4.3-10 Female

Dimensions

Height	88 mm \| 3.465 in
Width	386 mm \| 15.197 in
Depth	152 mm \| 5.984 in
Mounting Pipe Diameter Range	43–122 mm

Electrical Specifications

Impedance	50 ohm
License Band, Band Pass	APT 700 \| CEL 850 \| CEL 900 \| DCS 1800 \| EDD 800 \| IMT 2100 \| IMT 2600 \| LMR 800 \| LMR 900 \| SDL 1400 \| TDD 2300 \| USA 600

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through, combiner	Branch 1 \| Branch 2 \| Branch 3 \| Branch 4
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2 \| Branch 3 \| Branch 4
Lightning Surge Current	5 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical Specifications, AISG

AISG Carrier	2176 KHz ± 100 ppm
Insertion Loss, maximum	0.1 dB
Return Loss, minimum	18 dB

Electrical Specifications

Sub-module	1 \| 2	1 \| 2	1 \| 2	1 \| 2
Branch	1	2	3	4
Port Designation	PORT 1 617-960	PORT 2 1350-2200	PORT 3 2300-2400	PORT 4 2496-2700
License Band	APT 700, Band Pass; CEL 850, Band Pass; CEL 900, Band Pass; EDD 800, Band Pass; LMR 750, Band Pass; LMR 800, Band Pass; LMR 900, Band Pass; USA 600, Band Pass	DCS 1800, Band Pass; IMT 2100, Band Pass; LMR 900, Band Pass; PDC 1500, Band Pass; SDL 1400, Band Pass	TDD 2300, Band Pass	IMT 2600, Band Pass; TDD 2600, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz	617–960	1350–2200	2300–2400	2496–2700
Insertion Loss, typical, dB	0.15	0.10	0.20	0.15
Return Loss, typical, dB	20	20	20	20
Isolation, typical, dB	38	38	38	38
Input Power, RMS, maximum, W	125	125	125	125
Input Power, PEP, maximum, W	1,250	1,250	1,250	1,250
3rd Order PIM, typical, dBc	-155	-155	-155	-155
3rd Order PIM Test Method	Two +43 dBm carriers	Two +43 dBm carriers	Two +43 dBm carriers	Two +43 dBm carriers

Mechanical Specifications

Wind Speed, maximum

200 km/h (124 mph)

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Environmental Test Method	ETSI EN 300 019-1-4
Ingress Protection Test Method	IEC 60529:2001, IP67
Vibration Test Method	IEC 60068-2-6
