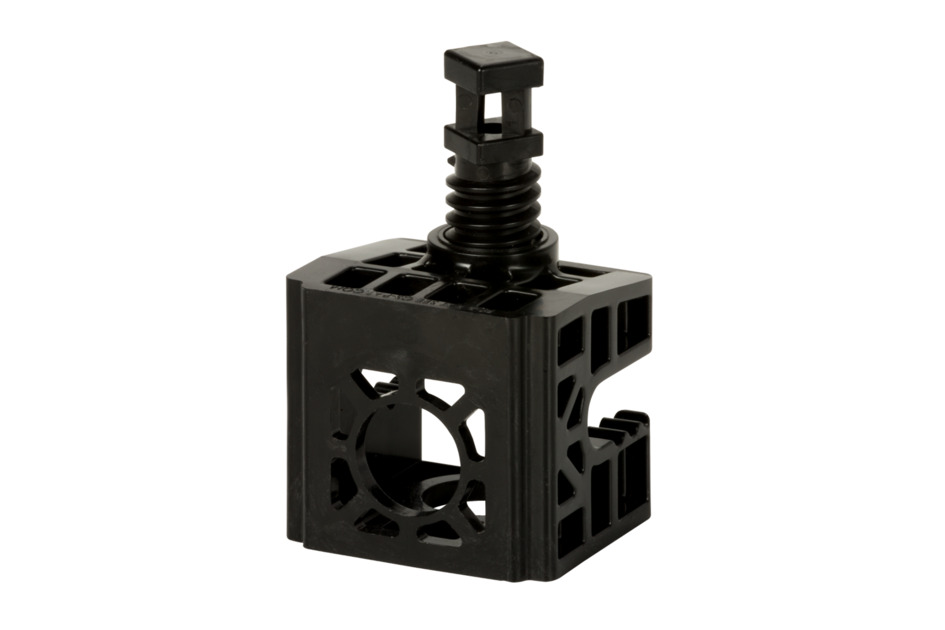

UA-3C

PIM free, Angle member attachment. Includes torque stop set bolt to ensure proper attachment force. Two 3/4" holes for Snap-in style hangers

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Specifications

Product Classification

Product Type	Adapter
Ordering Note	CommScope® standard product (Global)

Height	44.958 mm \| 1.77 in
Outside Width	49.022 mm \| 1.93 in
Inside Length	25.4 mm \| 1 in
Outside Length	42.672 mm \| 1.68 in
Compatible Diameter, maximum	11.113 mm \| 0.4375 in
Compatible Diameter, minimum	3.175 mm \| 0.125 in
Material Thickness	3.175 mm \| 0.125 in

Material Type

Engineered plastic

Installation Torque, maximum	5.423 N-m \| 4 ft lb
Installation Torque, minimum	4.067 N-m \| 3 ft lb
Maximum Loading	Triple stack, 1/2 in cable

Operating Temperature	-20 °C to +85 °C (-4 °F to +185 °F)
UV Resistance, minimum with no degradation	≥1000 hours

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
