BHD-38

Base Product: BH-SERIES-HANGER-BLOCKS

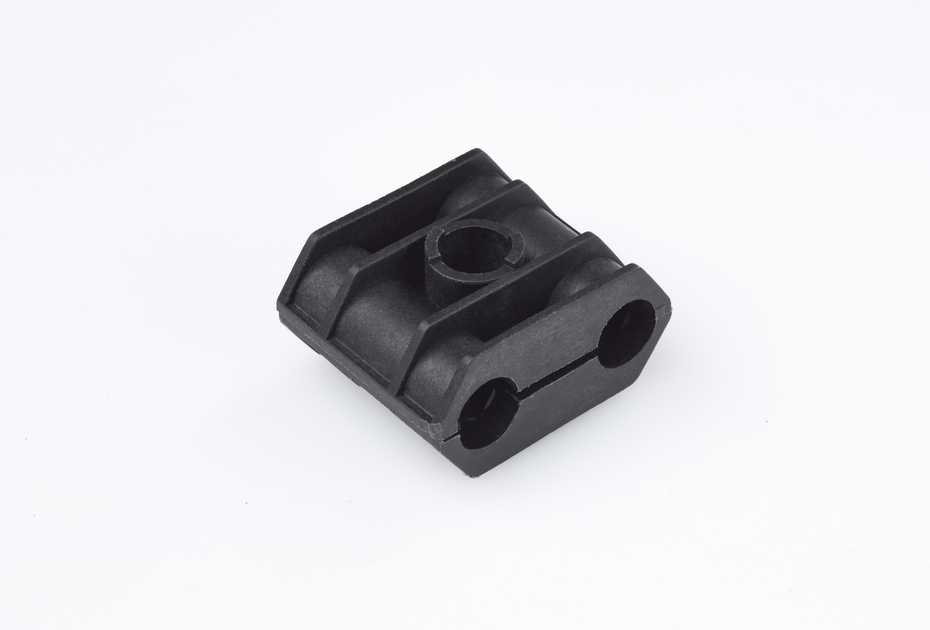

Double Block Hanger for 3/8 in coaxial cable

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod

Dimensions

Maximum Stack Height 3
Height 36.1 mm | 1.421 in
Width 24.1 mm | 0.949 in
Length 42.9 mm | 1.689 in
Compatible Cable Diameter Range 10–12 mm
Compatible Diameter, maximum 12 mm | 0.472 in
Compatible Diameter, minimum 10 mm | 0.394 in
Nominal Size 3/8 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 3.8 cm | 1.496 in
Width, packed 12.7 cm | 5 in
Length, packed 17.8 cm | 7.008 in
Packaging quantity 10
Weight, gross 0.14 kg | 0.309 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type Hanger kit

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod

Dimensions

Maximum Stack Height 3
Height 36.1 mm | 1.421 in
Width 24.1 mm | 0.949 in
Length 42.9 mm | 1.689 in
Compatible Cable Diameter Range 10–12 mm
Compatible Diameter, maximum 12 mm | 0.472 in
Compatible Diameter, minimum 10 mm | 0.394 in
Nominal Size 3/8 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 3.8 cm | 1.496 in
Width, packed 12.7 cm | 5 in
Length, packed 17.8 cm | 7.008 in
Packaging quantity 10
Weight, gross 0.14 kg | 0.309 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
