SSH-411

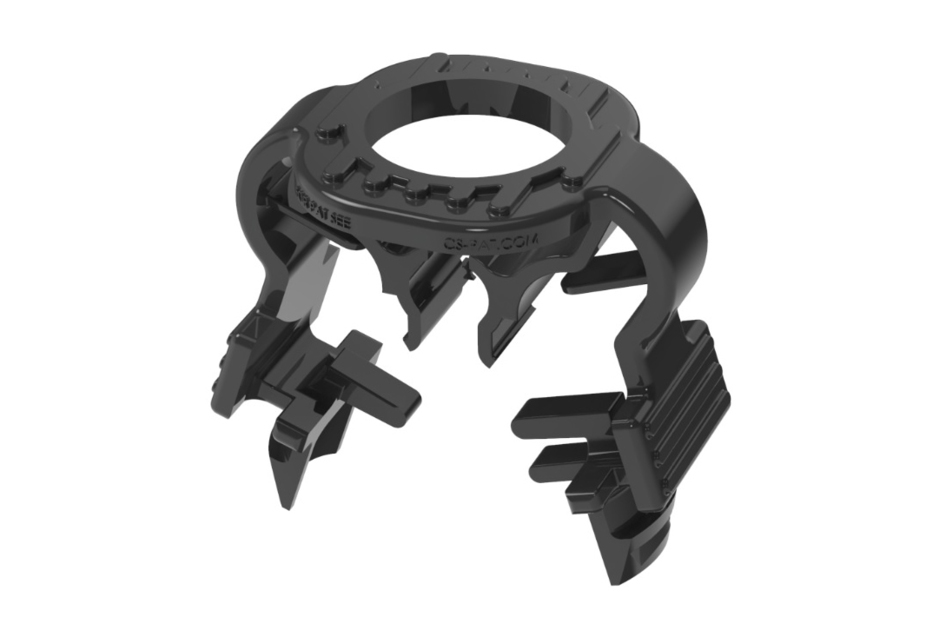

SnapTak PIM-Guard Adjustable Hanger for 4.0 mm to 11.0 mm Cable – PIM Free Polymer Construction. No Grommets Required. For patents, see www.cs-pat.com.
Specifications
Product Classification
| Product Type | Hanger kit |
| Product Brand | SnapTak PIM-Guard |
| Ordering Note | CommScope® standard product in Asia Pacific | CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in the United States and Canada |
General Specifications
| Accessories | Hangers |
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | Snap-in hanger |
| Mounting | 3/4 in drilled cable ladder |
Dimensions
| Maximum Stack Height | 3 |
| Maximum Stack Height, Coaxial | 3 |
| Height | 42.8 mm | 1.685 in |
| Width | 32 mm | 1.260 in |
| Length | 46.7 mm | 1.839 in |
| Compatible Diameter, maximum | 11 mm | 0.433 in |
| Compatible Diameter, minimum | 4 mm | 0.157 in |
| Diameter Over Messenger Wire, maximum | 11 mm | 0.433 in |
| Diameter Over Messenger Wire, minimum | 4 mm | 0.157 in |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥1000 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 3.1 cm | 1.22 in |
| Width, packed | 20.3 cm | 7.992 in |
| Length, packed | 25.4 cm | 10 in |
| Packaging quantity | 10 |
| Weight, gross | 0.36 kg | 0.794 lb |
Product Classification
| Product Type | Hanger kit |
| Product Brand | SnapTak PIM-Guard |
| Ordering Note | CommScope® standard product in Asia Pacific | CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in the United States and Canada |
General Specifications
| Accessories | Hangers |
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | Snap-in hanger |
| Mounting | 3/4 in drilled cable ladder |
Dimensions
| Maximum Stack Height | 3 |
| Maximum Stack Height, Coaxial | 3 |
| Height | 42.8 mm | 1.685 in |
| Width | 32 mm | 1.260 in |
| Length | 46.7 mm | 1.839 in |
| Compatible Diameter, maximum | 11 mm | 0.433 in |
| Compatible Diameter, minimum | 4 mm | 0.157 in |
| Diameter Over Messenger Wire, maximum | 11 mm | 0.433 in |
| Diameter Over Messenger Wire, minimum | 4 mm | 0.157 in |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥1000 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 3.1 cm | 1.22 in |
| Width, packed | 20.3 cm | 7.992 in |
| Length, packed | 25.4 cm | 10 in |
| Packaging quantity | 10 |
| Weight, gross | 0.36 kg | 0.794 lb |
