ECI-10-292-4
Base Product: ENTRY-PANEL-KIT-SERIES

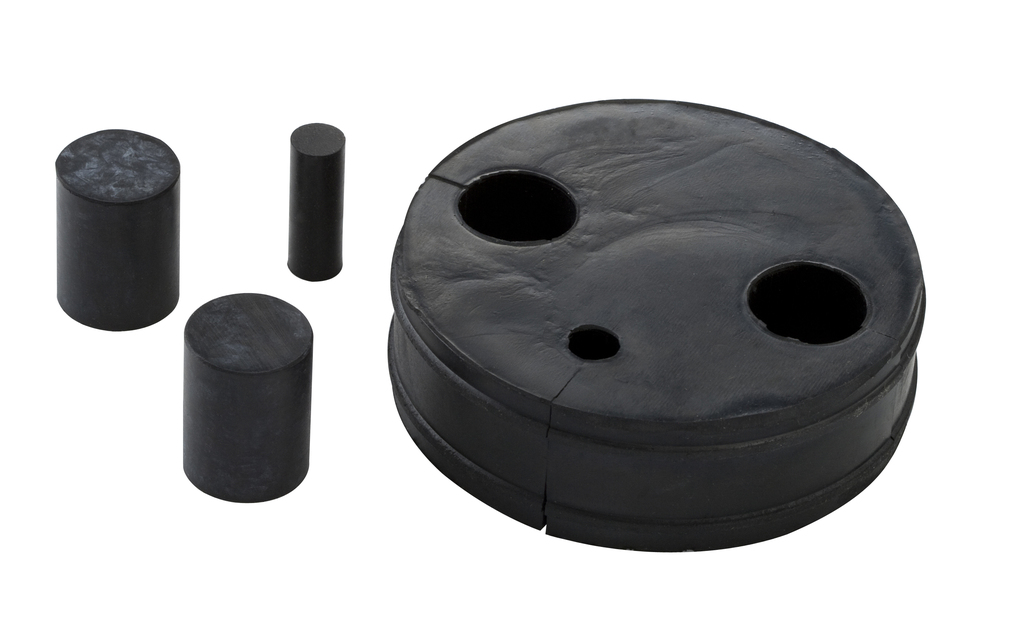

HELIAX® 4" Boot Assembly for one 10 mm fiber cable and one or two 29 mm power cables
Specifications
Product Classification
| Product Type | Boot assembly |
| Product Brand | HELIAX® |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cables per Cushion | 3 |
| Color | Black |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 0 mm | 0 in |
| Length | 76.2 mm | 3 in |
| Nominal Size | NA |
Material Specifications
| Material Type | EPDM rubber |
Environmental Specifications
| UV Resistance, minimum with no degradation | ≥1000 hours |
Packaging and Weights
| Height, packed | 170.18 mm | 6.7 in |
| Width, packed | 129.54 mm | 5.1 in |
| Length, packed | 99.06 mm | 3.9 in |
| Included | Cushion |
| Packaging quantity | 1 |
| Weight, gross | 0.9 kg | 1.984 lb |
Product Classification
| Product Type | Boot assembly |
| Product Brand | HELIAX® |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cables per Cushion | 3 |
| Color | Black |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 0 mm | 0 in |
| Length | 76.2 mm | 3 in |
| Nominal Size | NA |
Material Specifications
| Material Type | EPDM rubber |
Environmental Specifications
| UV Resistance, minimum with no degradation | ≥1000 hours |
Packaging and Weights
| Height, packed | 170.18 mm | 6.7 in |
| Width, packed | 129.54 mm | 5.1 in |
| Length, packed | 99.06 mm | 3.9 in |
| Included | Cushion |
| Packaging quantity | 1 |
| Weight, gross | 0.9 kg | 1.984 lb |
