SG114-06B2A

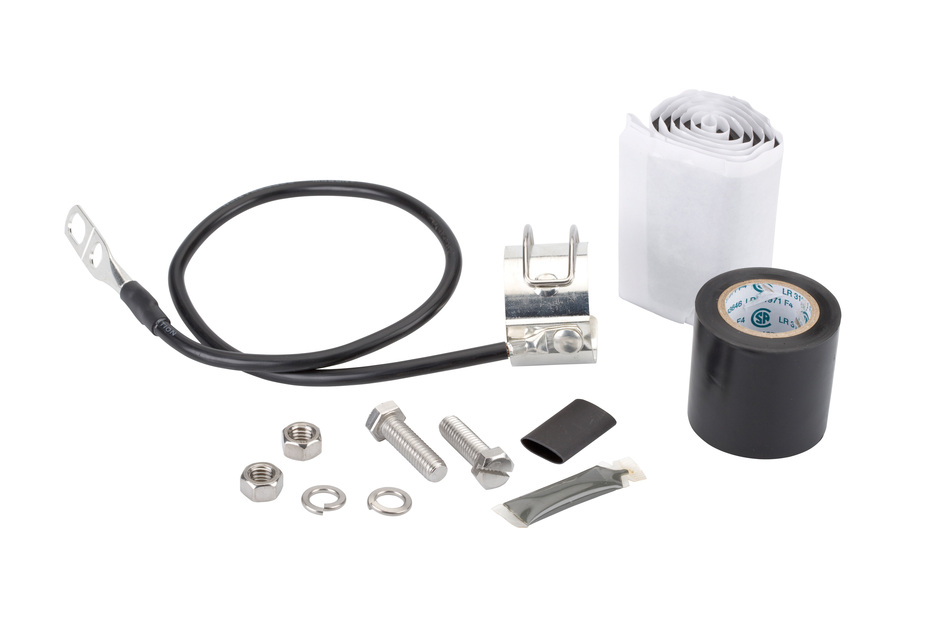

SureGround® Grounding Kit for 1-1/4 in coaxial cable
Specifications
Product Classification
| Product Type | Grounding kit |
| Product Brand | SureGround® |
| Ordering Note | CommScope® standard product in Europe, the Middle East, and Africa | CommScope® standard product in Mexico, Central America, and South America |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Corrugated | Smoothwall |
| Color | Black |
| Grounding Kit Type | SureGround® Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Factory attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in |
Dimensions
| Bonding Conductor Length | 609.6 mm | 24 in |
| Cable Jacketing Removal Length, maximum | 38.1 mm | 1.5 in |
| Cable Jacketing Removal Length, minimum | 38.1 mm | 1.5 in |
| Compatible Diameter, maximum | 40.132 mm | 1.58 in |
| Compatible Diameter, minimum | 38.354 mm | 1.51 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Locking Bail Material | Stainless steel |
| Rivet Material | Tinned copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 292.1 mm | 11.5 in |
| Width, packed | 55.88 mm | 2.2 in |
| Length, packed | 177.8 mm | 7 in |
| Included | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Packaging quantity | 1 |
| Weight, gross | 0.62 kg | 1.367 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Product Classification
| Product Type | Grounding kit |
| Product Brand | SureGround® |
| Ordering Note | CommScope® standard product in Europe, the Middle East, and Africa | CommScope® standard product in Mexico, Central America, and South America |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Corrugated | Smoothwall |
| Color | Black |
| Grounding Kit Type | SureGround® Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Factory attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in |
Dimensions
| Bonding Conductor Length | 609.6 mm | 24 in |
| Cable Jacketing Removal Length, maximum | 38.1 mm | 1.5 in |
| Cable Jacketing Removal Length, minimum | 38.1 mm | 1.5 in |
| Compatible Diameter, maximum | 40.132 mm | 1.58 in |
| Compatible Diameter, minimum | 38.354 mm | 1.51 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Locking Bail Material | Stainless steel |
| Rivet Material | Tinned copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 292.1 mm | 11.5 in |
| Width, packed | 55.88 mm | 2.2 in |
| Length, packed | 177.8 mm | 7 in |
| Included | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Packaging quantity | 1 |
| Weight, gross | 0.62 kg | 1.367 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
