BC-30-10D

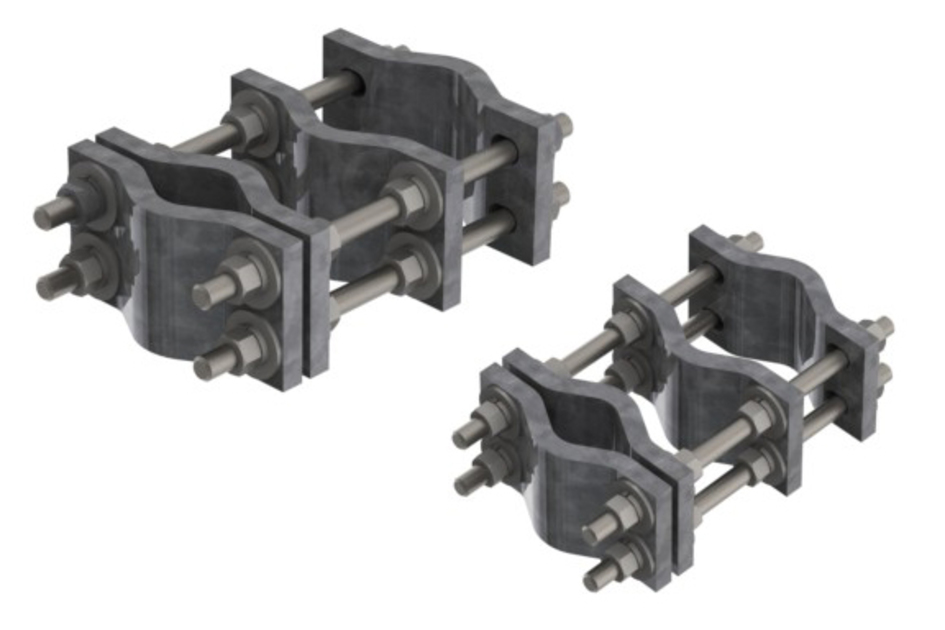

Pipe-to-Pipe Clamp, joins two 1-1/2 in to 3-1/2 in OD round members
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Clamp set

General Specifications

Mounting Pipe-to-pipe
Tower Taper Non-tapered | Tapered

Dimensions

Height 5 in | 127 mm
Width 8 in | 203.2 mm
Length 10 in | 254 mm
Mounting Diameter 2, maximum 3.5 in | 88.9 mm
Mounting Diameter 2, minimum 1.5 in | 38.1 mm
Mounting Diameter, maximum 3.5 in | 88.9 mm
Mounting Diameter, minimum 1.5 in | 38.1 mm

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Threaded rod | Clamp halves
Packaging quantity 2
Weight, net 12.2 kg | 26.896 lb

Product Classification

Product Type Clamp set

General Specifications

Mounting Pipe-to-pipe
Tower Taper Non-tapered | Tapered

Dimensions

Height 5 in | 127 mm
Width 8 in | 203.2 mm
Length 10 in | 254 mm
Mounting Diameter 2, maximum 3.5 in | 88.9 mm
Mounting Diameter 2, minimum 1.5 in | 38.1 mm
Mounting Diameter, maximum 3.5 in | 88.9 mm
Mounting Diameter, minimum 1.5 in | 38.1 mm

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Threaded rod | Clamp halves
Packaging quantity 2
Weight, net 12.2 kg | 26.896 lb
