CO-400

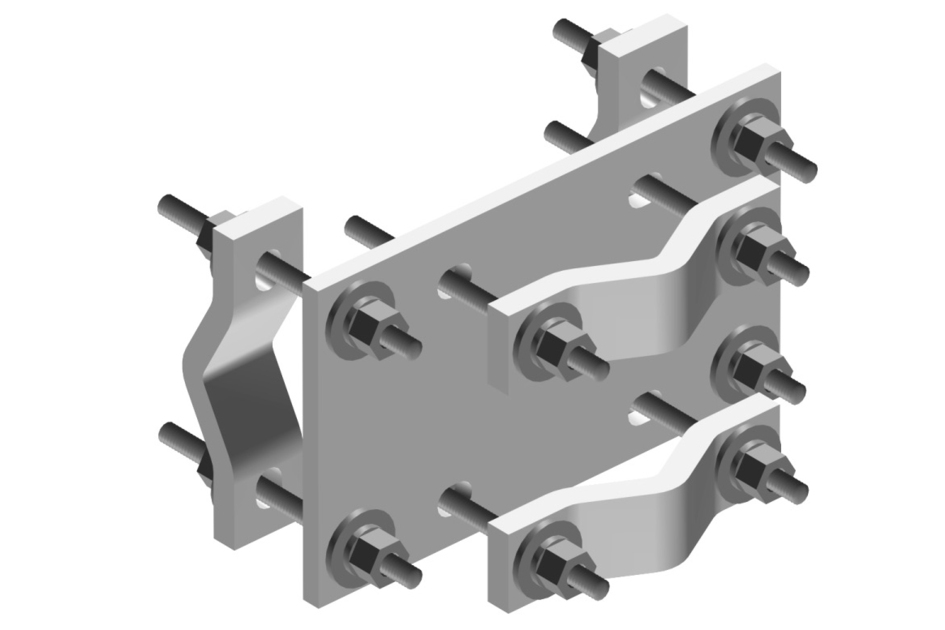

Crossover Plate, joins 2 in to 5 in OD to 4 in to 9 in OD round member
Specifications
Product Classification
| Product Type | Clamp plate |
General Specifications
| Mounting | Crossover plate |
| Tower Taper | Non-tapered |
Dimensions
| Height | 304.8 mm | 12 in |
| Width | 304.8 mm | 12 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter 2, maximum | 228.6 mm | 9 in |
| Mounting Diameter 2, minimum | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Plates |
| Packaging quantity | 1 |
| Weight, net | 13.6 kg | 29.983 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
