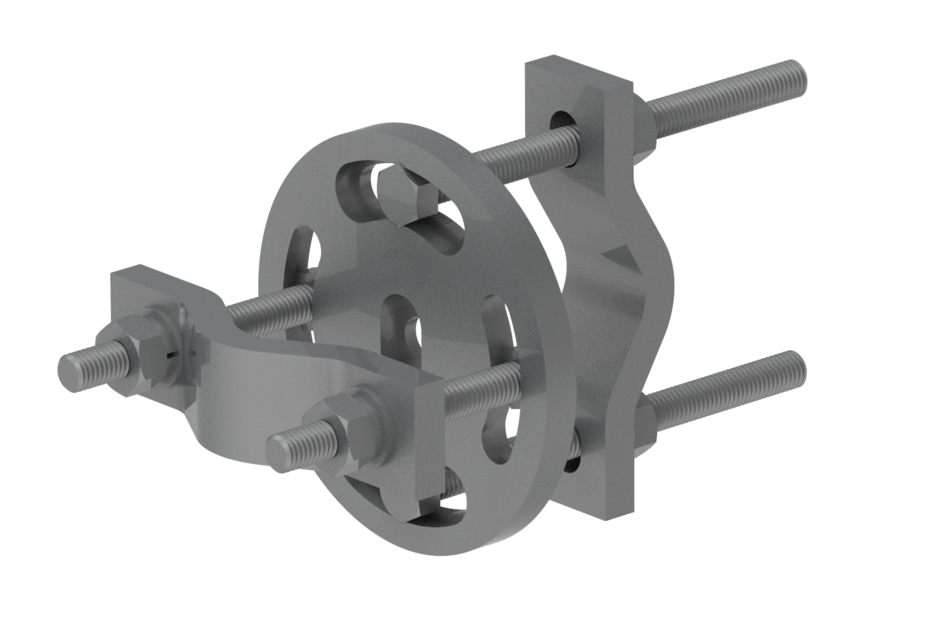

VZWSMART-MSK14
Universal Crossover Plate,Round - joins range of 2-3/8 up to to 3-1/2 in OD round members
Specifications
Product Classification
| Product Type | Clamp plate |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Height | 139.7 mm | 5.5 in |
| Width | 139.7 mm | 5.5 in |
| Length | 266.7 mm | 10.5 in |
| Mounting Diameter 2, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter 2, minimum | 60.96 mm | 2.4 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Hardware | Plates |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
Product Classification
| Product Type | Clamp plate |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Height | 139.7 mm | 5.5 in |
| Width | 139.7 mm | 5.5 in |
| Length | 266.7 mm | 10.5 in |
| Mounting Diameter 2, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter 2, minimum | 60.96 mm | 2.4 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Hardware | Plates |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
