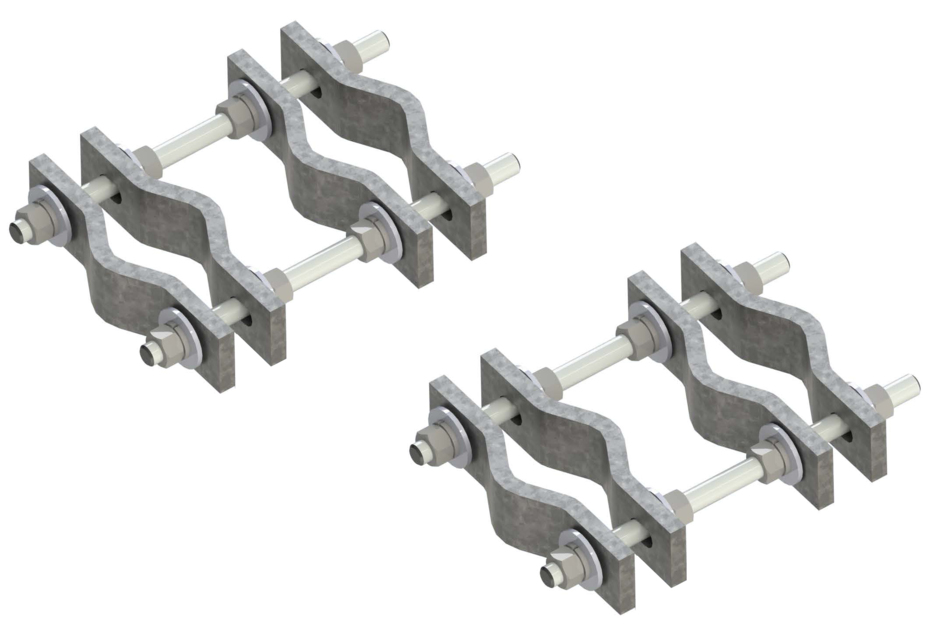

VZWSMART-MSK3 | PIPE TO PIPE CLAMP, 1-1/2” to 4-1/2”
Pipe to Pipe Clamps for 1-1/2” to 4-1/2” Pipes
Specifications
Product Classification
| Product Type | Clamp set |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Pipe-to-pipe |
Dimensions
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Clamp set |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Pipe-to-pipe |
Dimensions
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
