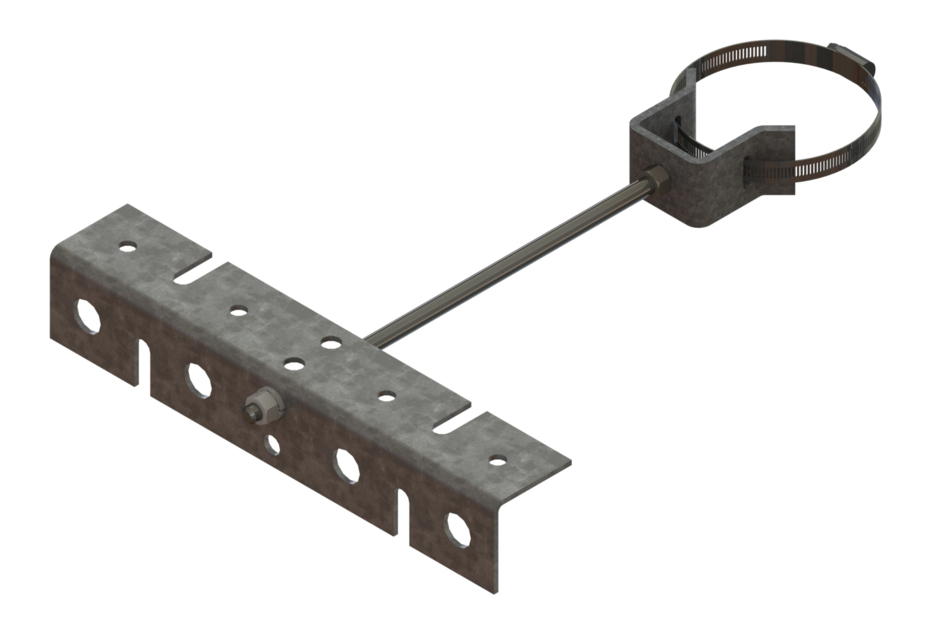

ACS-4
Antenna and RRU Cable Support Bracket for up to 4 Cables
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Support bracket |
| Customer Material Number | ANT.16502 |
| Warranty | One year |
General Specifications
| Cable Runs, quantity | 4 |
| Hole, quantity | 4 |
Dimensions
| Width | 304.8 mm | 12 in |
| Length | 294.64 mm | 11.6 in |
| Mounting Diameter, maximum | 50.8 mm | 2 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Portfolio | CommScope® |
| Product Type | Support bracket |
| Customer Material Number | ANT.16502 |
| Warranty | One year |
General Specifications
| Cable Runs, quantity | 4 |
| Hole, quantity | 4 |
Dimensions
| Width | 304.8 mm | 12 in |
| Length | 294.64 mm | 11.6 in |
| Mounting Diameter, maximum | 50.8 mm | 2 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
