PG-RM06

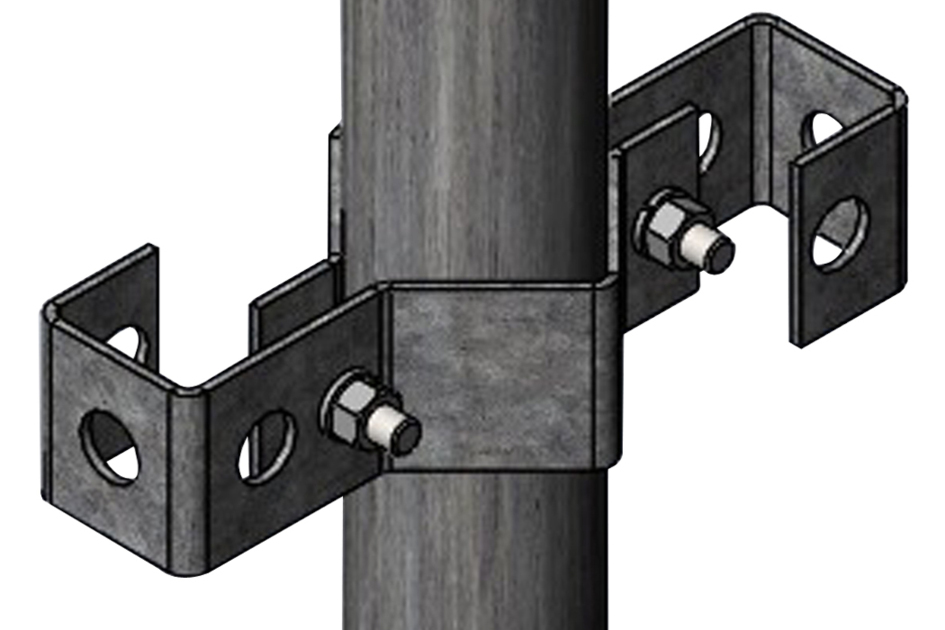

PIM-guard Round Member Cable Support Bracket 6 ports for stackable hangers (up to 3 per port). Install with torque wrench set at 5 to 7 ft-lb to meet carrier PIM requirements. For patents, see www.cs-pat.com
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 6
Hole, quantity 6
Mounting Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 50.8 mm | 2 in
Length 198.12 mm | 7.8 in
Mounting Diameter, maximum 60.96 mm | 2.4 in
Mounting Diameter, minimum 88.9 mm | 3.5 in
Hole Size 3/4 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Packaging quantity 1
Weight, net 2.3 kg | 5.071 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 6
Hole, quantity 6
Mounting Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 50.8 mm | 2 in
Length 198.12 mm | 7.8 in
Mounting Diameter, maximum 60.96 mm | 2.4 in
Mounting Diameter, minimum 88.9 mm | 3.5 in
Hole Size 3/4 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Packaging quantity 1
Weight, net 2.3 kg | 5.071 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
