WB-TT12
Base Product: WGB-AND-MISC-CABLE-SUPPORTS

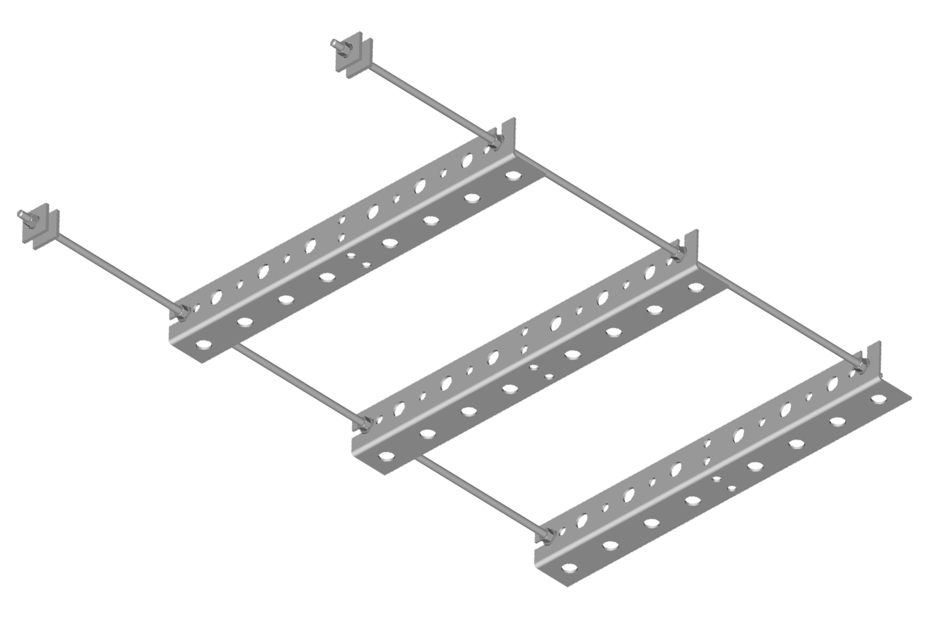

Trapeze Kit, 12 in wide, three rungs
Specifications
Product Classification
| Product Type | Trapeze kit |
General Specifications
| Application | Waveguide bridge kit, 12 in |
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Waveguide bridge channel |
| Rungs, quantity | 3 |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 304.8 mm | 12 in |
| Length | 76.2 mm | 3 in |
| Hole Size | 3/4 in | 7/16 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Angle brackets | Hardware | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 3.3 kg | 7.275 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Trapeze kit |
General Specifications
| Application | Waveguide bridge kit, 12 in |
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Waveguide bridge channel |
| Rungs, quantity | 3 |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 304.8 mm | 12 in |
| Length | 76.2 mm | 3 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Angle brackets | Hardware | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 3.3 kg | 7.275 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
