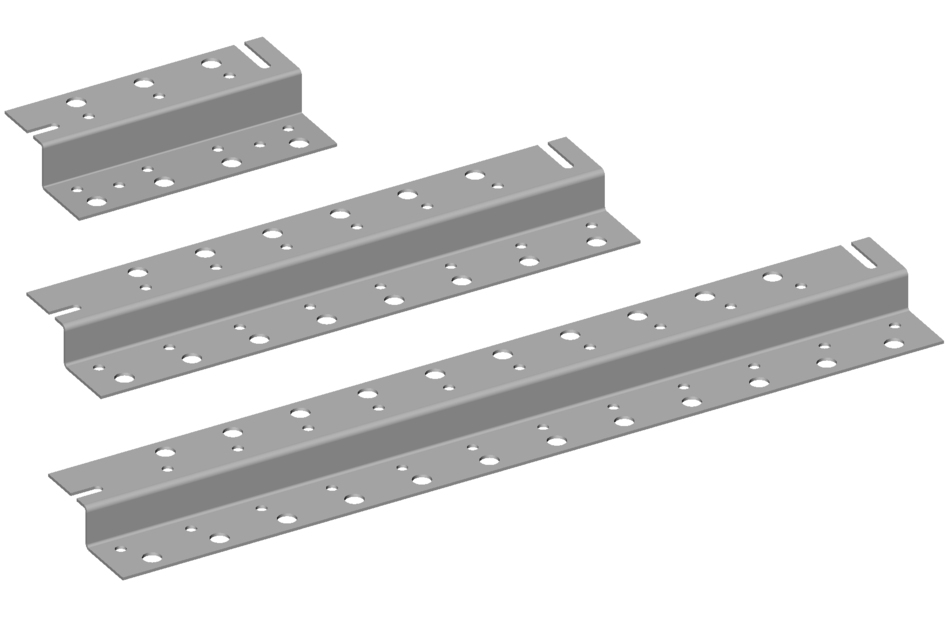

ZB-H8
Horizontal Z-bracket, 23 in, for 14 coaxial cable runs
Specifications
Product Classification
| Product Type | Bracket kit |
General Specifications
| Cable Runs, quantity | 14 |
| Hole, quantity | 14 |
| Mounting | Walls |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 152.4 mm | 6 in |
| Length | 584.2 mm | 23 in |
| Hole Size | 3/4 in | 7/16 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Z-bracket |
| Packaging quantity | 1 |
| Weight, net | 2.4 kg | 5.291 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Bracket kit |
General Specifications
| Cable Runs, quantity | 14 |
| Hole, quantity | 14 |
| Mounting | Walls |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 152.4 mm | 6 in |
| Length | 584.2 mm | 23 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Z-bracket |
| Packaging quantity | 1 |
| Weight, net | 2.4 kg | 5.291 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
