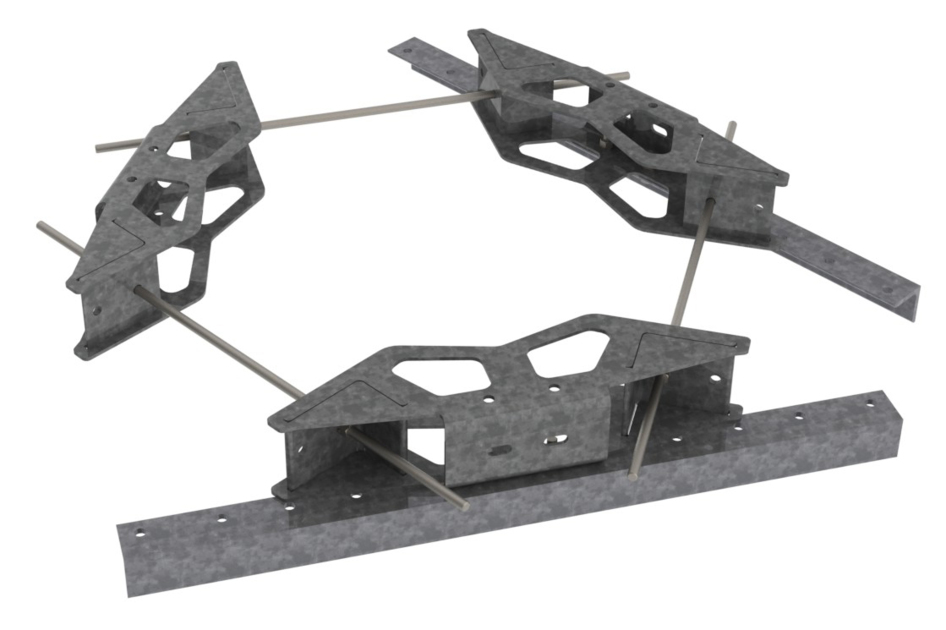

RM-SS-M2

Ring Mount Tie Back Support Kit

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type

Ring mount

Mounting	Monopole, 381–1270 mm (15–50 in) OD
Sectors, quantity	1

Height	254 mm \| 10 in
Width	1219.2 mm \| 48 in
Length	1219.2 mm \| 48 in
Mounting Diameter, maximum	1270 mm \| 50 in
Mounting Diameter, minimum	381 mm \| 15 in
Mounting Circumference, maximum	3990.34 mm \| 157.1 in
Mounting Circumference, minimum	1196.34 mm \| 47.1 in

Material Type

Hot dip galvanized steel

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
