MCG23RHDX-10M996

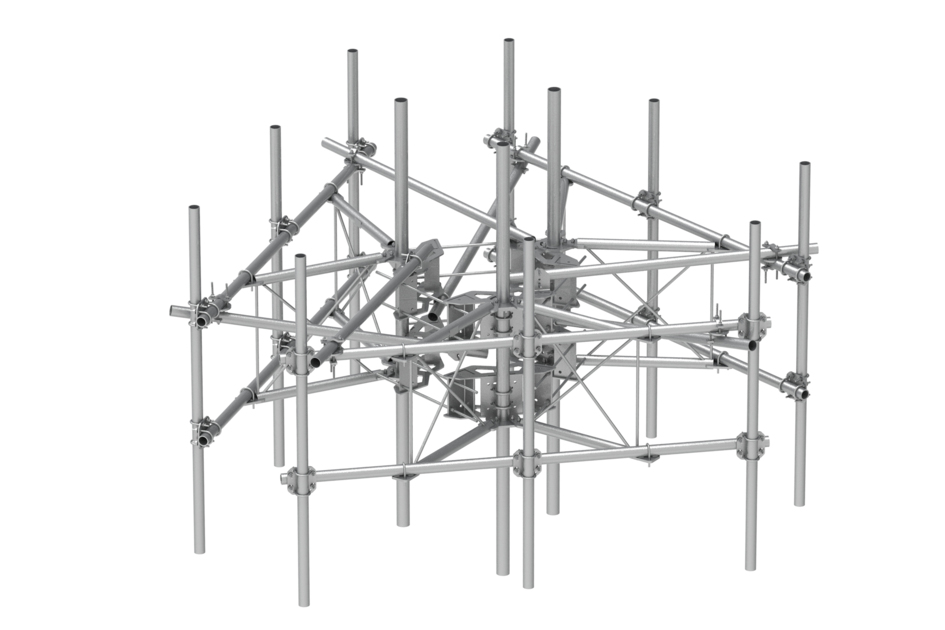

G23RHDX Monopole Sector Frame with spine extension for RRU Mounting, 10.5 ft x 2.88 in OD face pipes, includes nine 2.88 OD x 96 in antenna pipes

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

MCG23RHDX-10M996

Features and Benefits

• Extended spine for MCG23 RHDX mounts that decrease PIM
from radio relocation
• Increased versatility and stability
• Updated frame provides higher loading
• More RRU mounting available, reducing need for additional
mounts
• Better load management
• Less structure stress
• Can be used in combination with APEX RRU mounts

Specifications

Product Classification

Product Type	High capacity monopole sector frame
Product Brand	PIM-guard
Product Series	G2

General Specifications

Mounting	Monopole, 381–1270 mm (15–50 in) OD
Pipe, quantity	9
Sectors, quantity	3

Dimensions

Height	2438.400 mm \| 96 in
Face Width	3.200 m \| 10.5 ft
Width	3200.400 mm \| 126 in
Pipe Length	2438.400 mm \| 96 in
Face Support Pipe Diameter	73.025 mm \| 2.875 in
Mounting Diameter, maximum	1270 mm \| 50 in
Mounting Diameter, minimum	381 mm \| 15 in
Pipe Outer Diameter	73.025 mm \| 2.875 in
Stand-off Distance	1066.800 mm \| 42 in

Material Specifications

Material Type

Hot dip galvanized steel

Mechanical Specifications

Wind Rating	For Specifications, please contact steelproducts@commscope.com or call 800-255-1479
Wind Rating Test Method	TIA/EIA-222

Packaging and Weights

Included	Mounting hardware \| Pipe mounts \| Plain end pipes (9) \| Ring mounts (2) \| Sector frames (3) \| Stiff arm
Packaging quantity	1
