RR-FA4
Base Product: RRU-MOUNTS

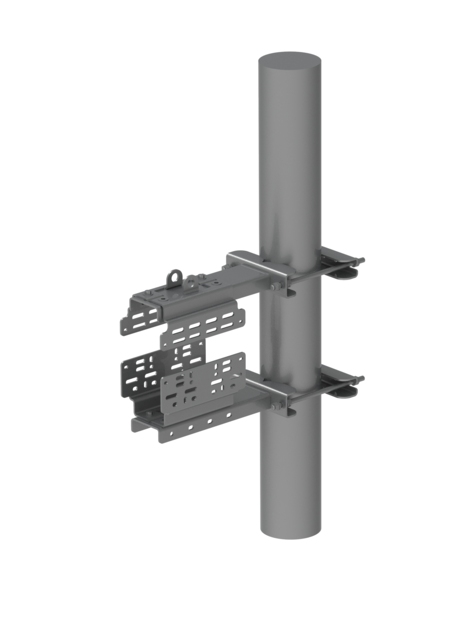

RRU Mount Kit for Back-to-Back Mounting of (2) RRUs on up to 5.6" Round, 6" 60 degree or 4.5" 90 Degree Angles
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Remote radio head unit mount |
| Ordering Note | CommScope® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round and angle legs |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 408.940 mm | 16.1 in |
| Width | 237.998 mm | 9.37 in |
| Length | 372.618 mm | 14.67 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 142.24 mm | 5.6 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 16.030 kg | 35.34 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Portfolio | CommScope® |
| Product Type | Remote radio head unit mount |
| Ordering Note | CommScope® standard product with terms |
| Warranty | One year |
General Specifications
| Mounting | Round and angle legs |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 408.940 mm | 16.1 in |
| Width | 237.998 mm | 9.37 in |
| Length | 372.618 mm | 14.67 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 142.24 mm | 5.6 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 16.030 kg | 35.34 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
