SFG23RHDXL14-5-96

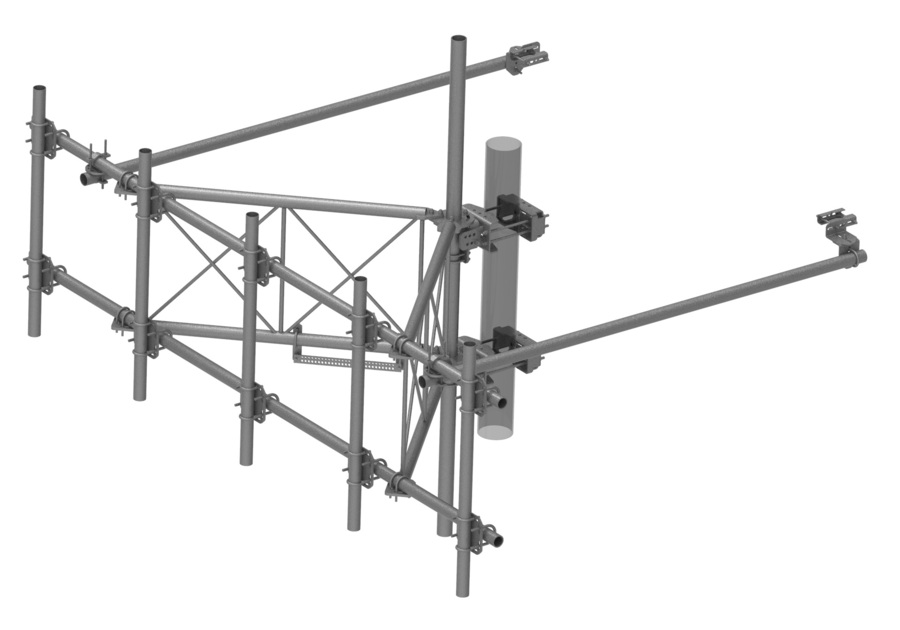

G23RHDXL PIM OPTIMIZED SPACING High Capacity Sector Frame with extended 10' Spine for RRU Mounting & extended frame for sites requiring increased sector to sector antenna spacing. 2 7/8in OD x 14.5ft face with (5) 2-7/8in OD x 96in Antenna pipes

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

SFG23RHDXL_5-pipes

Specifications

Product Classification

Product Type	High capacity Tower sector frame
Product Brand	PIM-guard
Product Series	G2

General Specifications

Mounting	Angle 60°, 203.2 mm (8 in) \| Straight or tapered legs up to 203.2 mm (8 in) OD
Patent Number	For patents see: www.cs-pat.com
Pipe, quantity	5
Sectors, quantity	1
Tower Taper	Non-tapered \| Tapered

Dimensions

Height	2438.400 mm \| 96 in
Face Width	4.420 m \| 14.5 ft
Platform Width	4419.600 mm \| 174 in
Face Support Pipe Diameter	73.025 mm \| 2.875 in
Mounting Diameter, maximum	203.200 mm \| 8 in
Mounting Diameter, minimum	38.1 mm \| 1.5 in
Pipe Outer Diameter	73.025 mm \| 2.875 in

Material Specifications

Material Type

Hot dip galvanized steel

Mechanical Specifications

Wind Rating	For Specifications, please contact steelproducts@commscope.com or call 800-255-1479
Wind Rating Test Method	TIA/EIA-222-G

Packaging and Weights

Included	Frame \| Plain end pipes \| Stiff arms (2) \| Tower attachment
Packaging quantity	1
