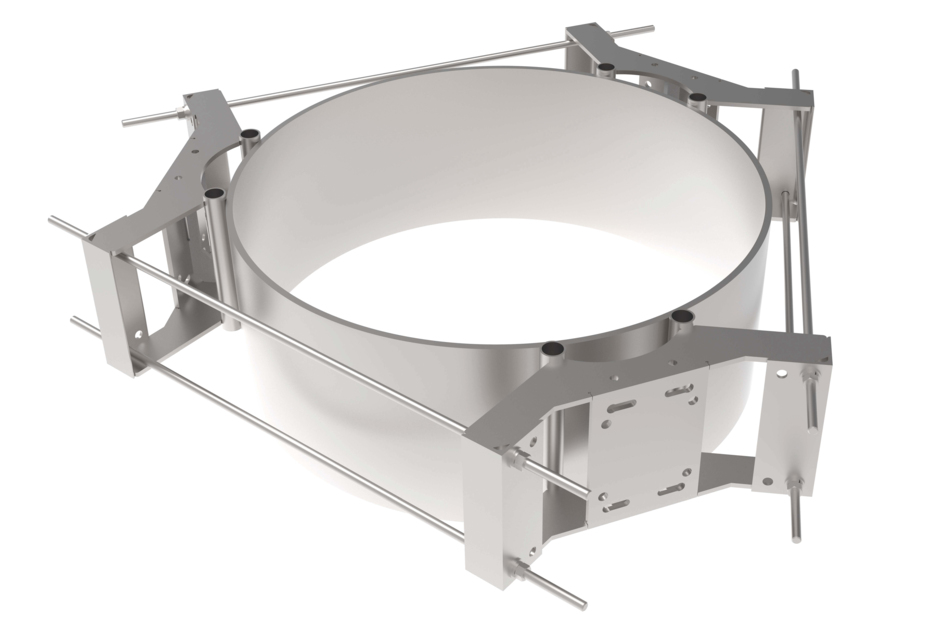

VZWSMART-PLK7 | MONOPOLE COLLAR / RING MOUNT ASSEMBLY
Collar / Ring Mount for 12” to 45” OD Monopoles with 6” x 6” x 5/8” bolt pattern
Specifications
Product Classification
| Product Type | Universal ring mount |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Ring mount | Threaded rod |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Universal ring mount |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Ring mount | Threaded rod |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
