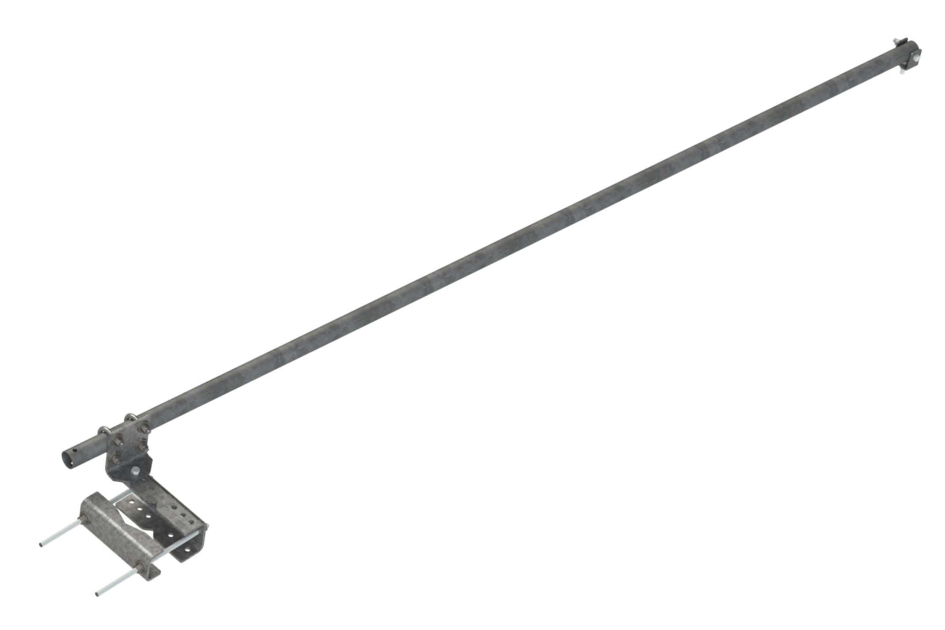

VZWSMART-SFK1 | TIE BACK / STIFF ARM KIT
Tieback Bracket / Stiff Arm, 2-3/8” OD x 10 ft Pipe with Attachment Hardware, for 1-1/2” to 8” OD or 60 degree angle tower leg
Specifications
Product Classification
| Product Type | Stiff arm mount |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Round and angle legs |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 3048.000 mm | 120 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Attachment hardware | Pipe |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
Product Classification
| Product Type | Stiff arm mount |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Mounting | Round and angle legs |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 3048.000 mm | 120 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Attachment hardware | Pipe |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
